Classic Model | Exchange Table Laser Cutting Machine

C Series

Great Flexibility Guarantees Adaptability in Constantly Changing Environments

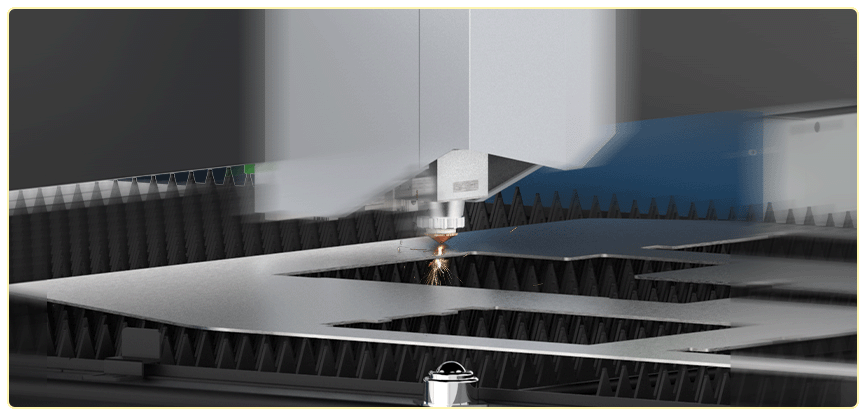

High - end CNC Cutting

Thanks to the capability to cut a wide range of metal workpieces with varying geometries, the C series improves the productivity of CNC cutting as well as the diversity of use Cases.

Superior Performance

Pioneer series delivers top - notch quality allowing for faster, smoother, and more precise cutting. An ideal choice to meet your high standards.

Time Efficiency

Pioneer series saves time and efforts by optimizing the laser cutting process to achieve a more streamlined production.

PARAMETER

Model	C3	C4	C6
Working Area(mm)	3050*1530mm	4100*2050mm	6100*2550mm
Dimension (LWH)	802026002100mm	1002031002100mm	1420036002400mm
Power Support	1500-30000w	1500-40000w	1500-40000w
Maximum Idle Running Speed	150m/min
Maximum Idle Acceleration	1.5G
X/Y Axis Positioning Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.02mm
Exchange Table Moving Time	10s

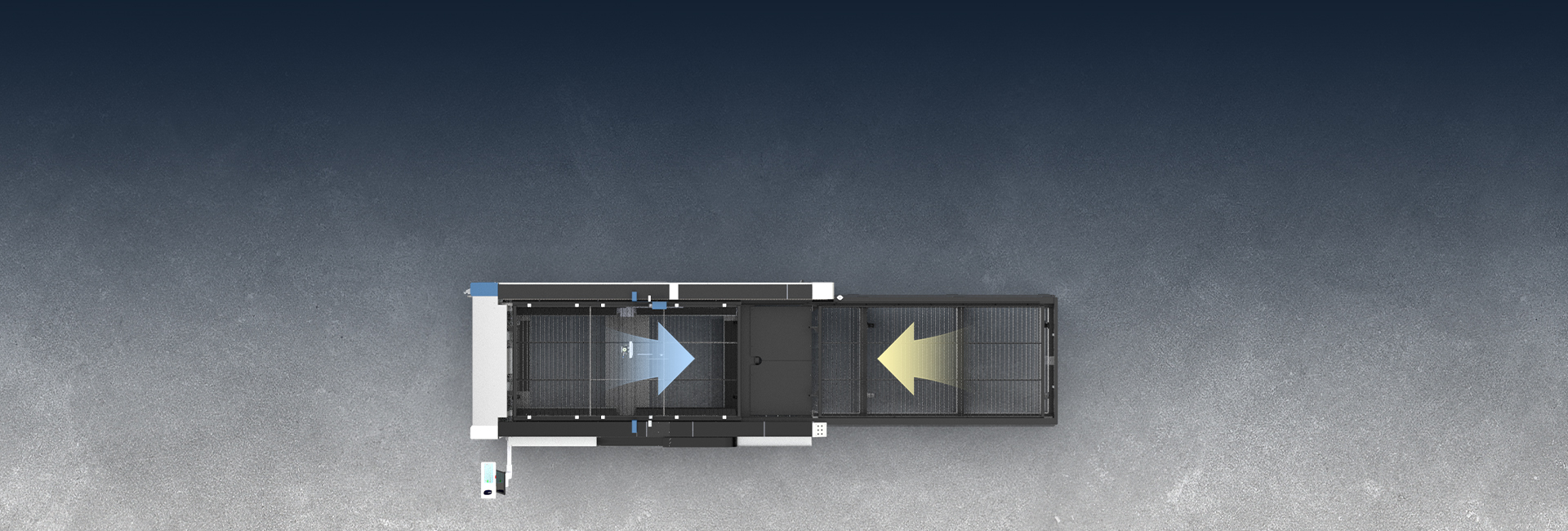

Rapid Exchange, Efficient Production

The workbench exchange time is only 10 seconds, resulting in a production efficiency increase of at least 50%.

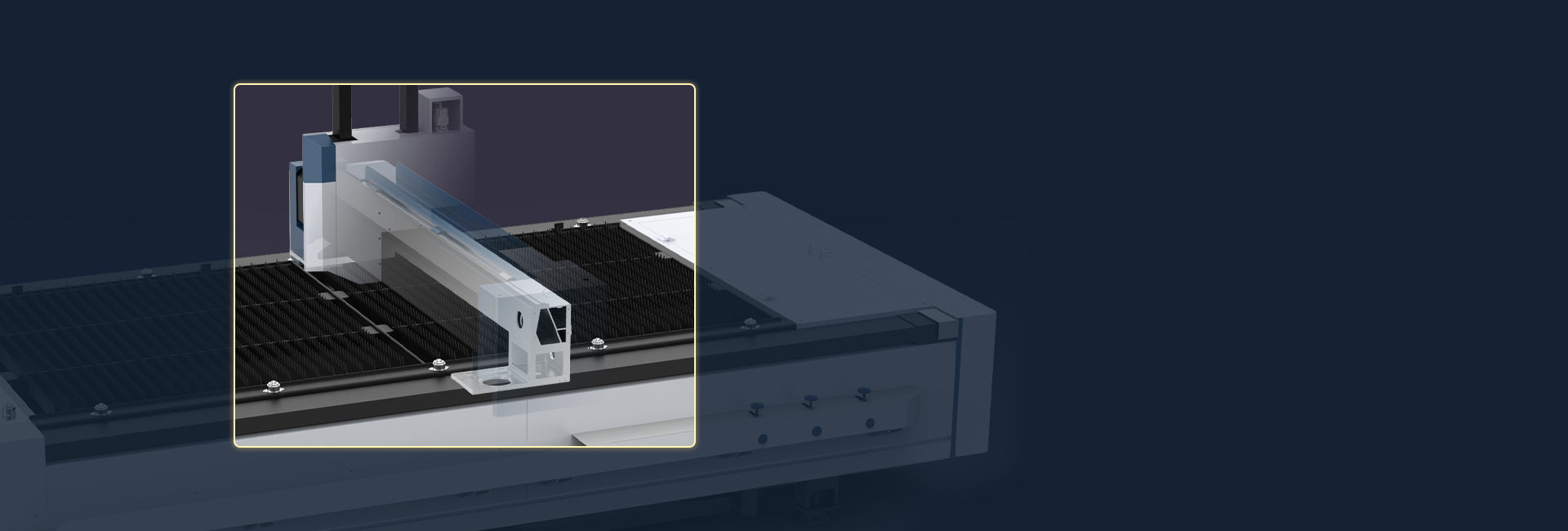

Aerospace Aluminum Beam

Aircraft-grade aluminum crossbar

30% Performance Improvement

Compared to the previous generation, the movement speed and cutting speed are significantly improved, with a maximum acceleration of 1.2G, meeting the needs of most markets.

30%

Overall Performance

Note: The "Overall Performance Improved by 30%" mentioned above is relative to KFLaser's previous-generation product.

1.2G

Max. Acceleration

It adopts high-performance bus servo motors to achieve the absolute leading dynamic

performance (compared with similar products in the market), significantly improving

processing efficiency to ensure that every second you invest creates value.

Applicable Industries

Widely utilized in a diverse range of industries, including hardware accessories, construction machinery, medical devices, outsourced processing, and photovoltaic equipment.
