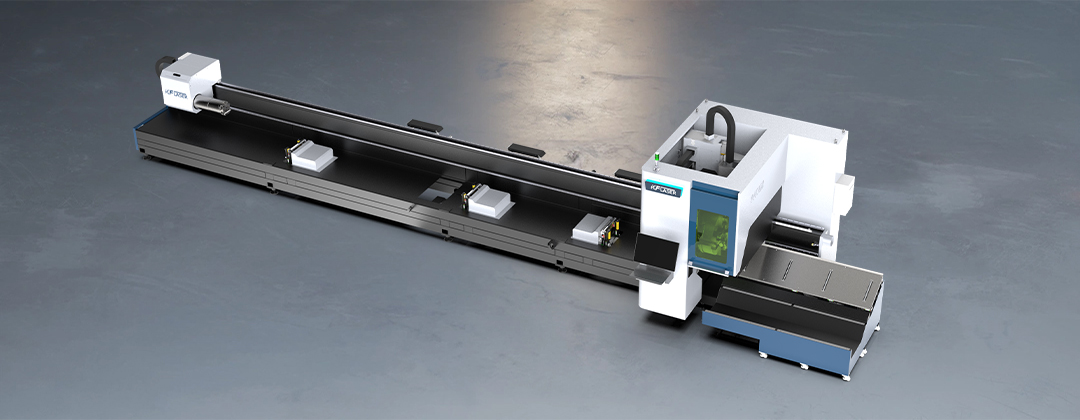

Classic Model | Side-Mounted Dual-Chuck Laser Tube Cutting Machine

TN Series

Product Specifications

That’s not all. We offer a wide range of models and specifications.

6000mm

Maximum Processing Length

8-165mm 15-230mm 20-360mm

Processing Pipe Size

1500-6000w

Power Support

100r/min

Chuck Rotation Speed

1.0G

Maximum Idle Acceleration

Semi-automatic (Standard)；Automatic (Optional)

Loading assembly

3000mm

Unloading Length

11230*2030*2140mm

Dimension(L*W*H)

120kg / 200kg / 1100kg

Chuck Weighing

100m/min

Maximum Idle Running Speed

±0.04mm

Positioning Accuracy

±0.01mm

Repeat Positioning Accuracy

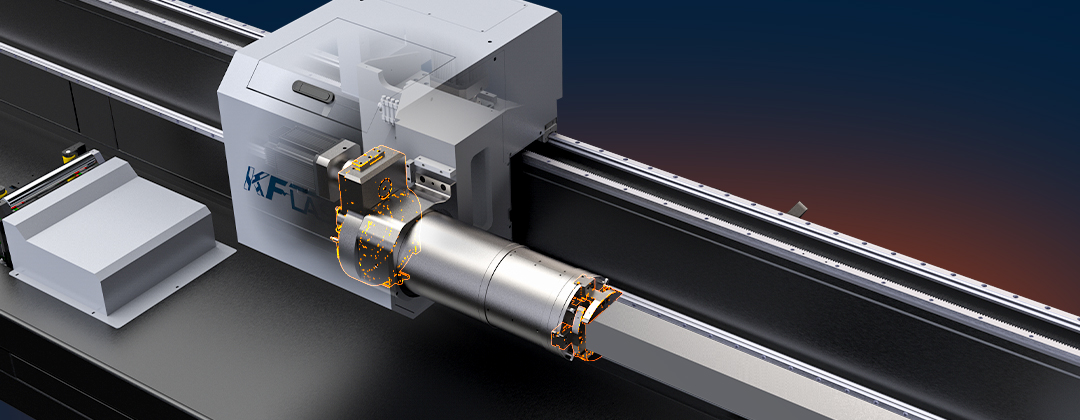

Rapid 2S Clamping

The pneumatic chuck features a direct-push cylinder design, enabling clamping operations in as little as two seconds. It is also easy to maintain.

Zero Waste. Pure Profit.

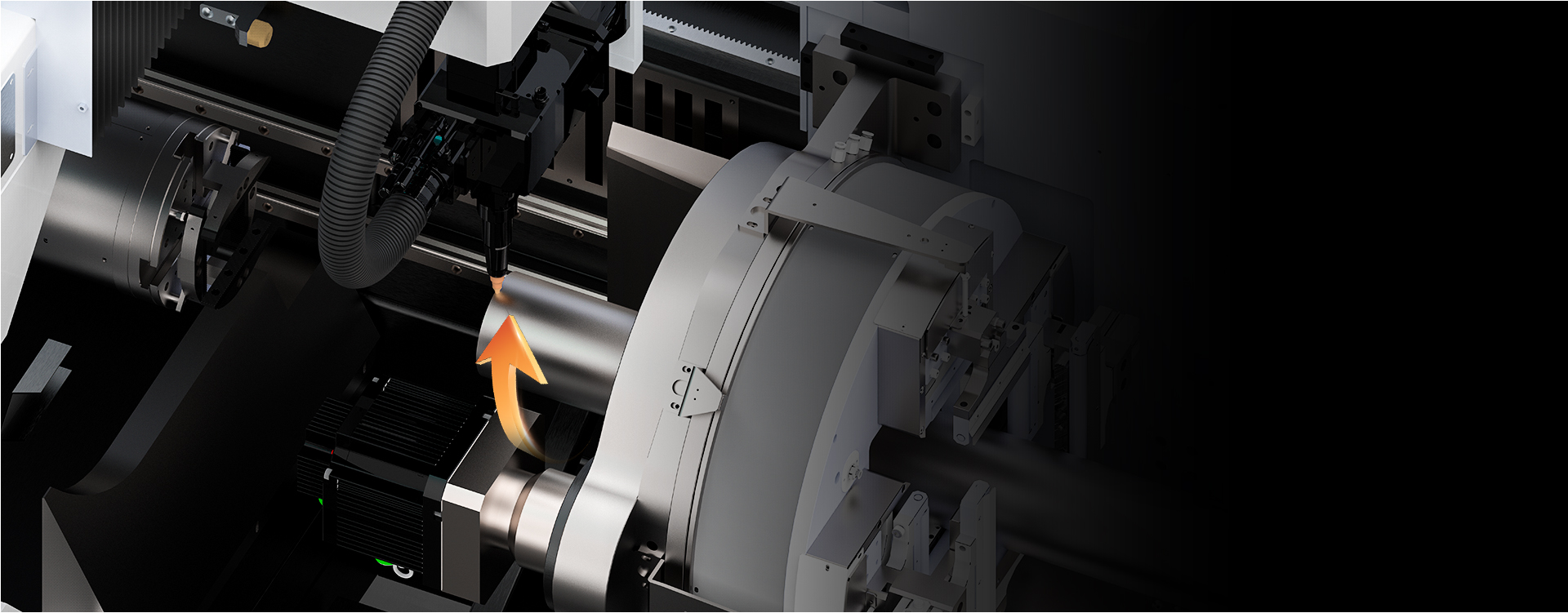

Maximize your material yield by leveraging industry-leading "Zero-Tailing Technology."

100%

Material Utilization

Performance Parameters

Laser Cutting Capabilities

Advantages Of Laser Cutting

Power	Stainless Steel	Carbon Steel	Aluminum Alloy	Brass	Purple Copper
3000w	1-8mm	1-20mm	1-6mm	1-5mm	1-3mm
6000w	1-16mm	1-25mm	1-14mm	1-10mm	1-6mm
8000w	1-25mm	1-30mm	1-18mm	1-12mm	1-8mm
12000w	1-30mm	1-40mm	1-25mm	1-12mm	1-8mm
20000w	1-80mm	1-50mm	1-60mm	1-20mm	1-12mm

Technology	Laser Cutting	Combustible Gas	Plasma Cutting	Stamping	Sawing	Linear Cutting	Water Cutting	Electro-Sparking
Carve	Very Small	Very Big	Bigger	Smaller	Bigger	Smaller	Bigger	Very Small
Deformation	Very Small	Serious	Bigger	Bigger	Smaller	Very Small	Small	Very Small
Accuracy	High	Low	Low	Low	Low	High	High	High
Graphic Update	Very Easy	More Difficulty	Easier	Difficulty	It failed	Easy	Easy	Easy
Speed	Higher	Lower	High	High	Very Slow	Very Slow	Higher	Very Slow

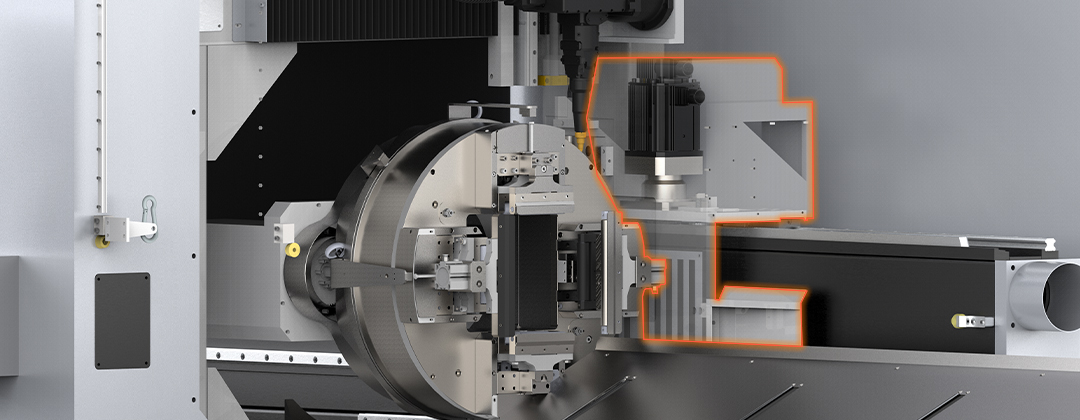

Front Chuck Advance, Precision Unchanged

The front chuck can move forward carrying the material, passing over the laser head. The laser head is positioned between the front and rear chucks, with dual clamping for cutting. When the last piece is a long workpiece, cutting precision is not affected by unstable single chuck clamping. High-quality workpieces are obtained from start to finish.

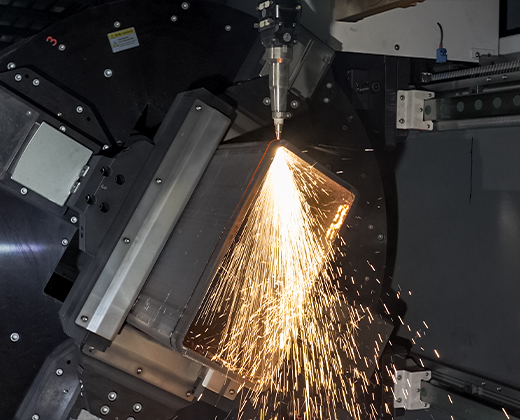

Edge-Crossing Protection & Ultimate Precision

Intelligently adjusts laser head tracking sensitivity to flexibly navigate edges during cutting, minimizing collision risks while maintaining consistent precision and efficiency.

≤0.15mm

Roundness of Ø20mm circular hole

≤0.25mm

Center deviation of 20mm square hole

≤0.2mm

Diagonal dimension difference of 20mm square hole

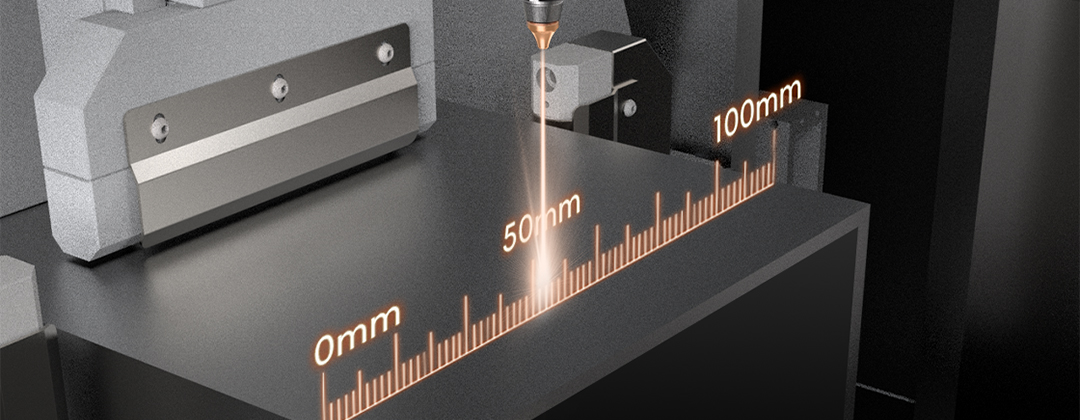

1S Centering,No Waiting Time

The TN Series excels in delivering remarkable precision specifically when cutting materials of varying thicknesses.

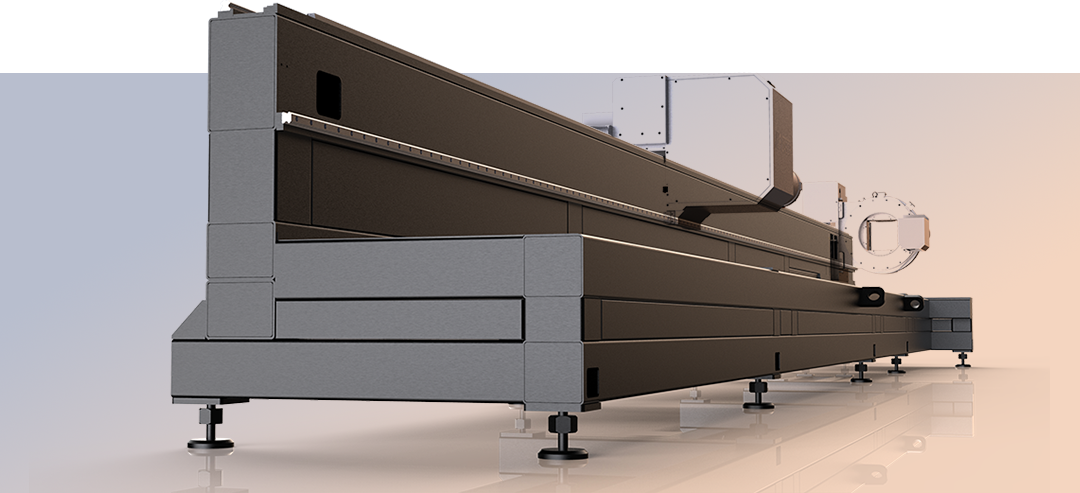

Third-Generation Thermally Symmetrical Machine Bed

31%

Rigidity Increased by

26%

Structural Strength Enhanced by

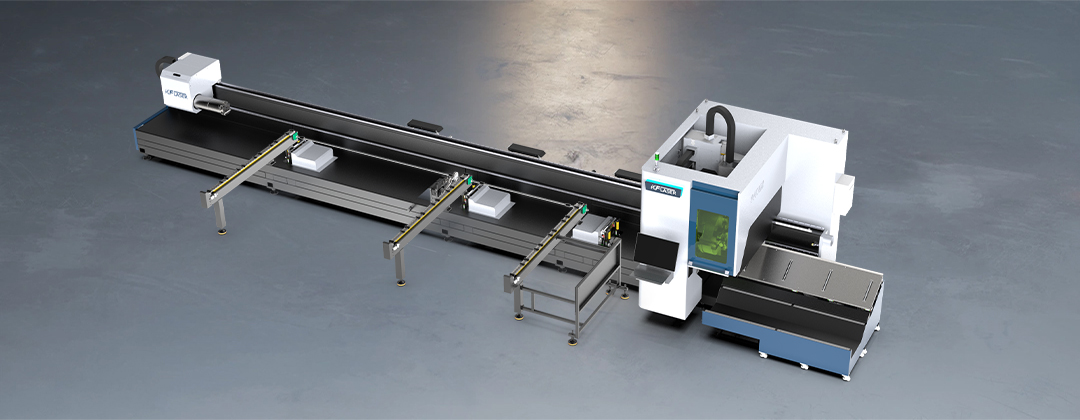

Loading Device

Standard semi-automatic auxiliary loading; optional fully automatic loading.

solar

electric vehicles

batteries

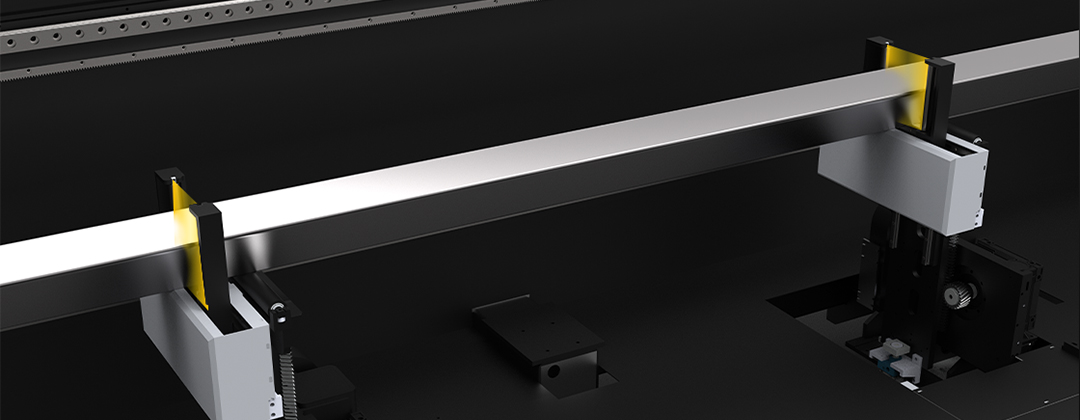

Follow-Up Rollers, Precision Leaped

Follow-up roller and intelligent centering support improve loading and unloading efficiency by 30%

Applicable Industries

Widely utilized in a diverse range of industries, including hardware accessories, construction machinery, medical devices, outsourced processing, and photovoltaic equipment.
