WE Series
The high-performance servo-driven backgauge system on this electro-hydraulic servo press brake ensures rapid, precise positioning via precision ball screws and linear guide rails.
4+1 Axis CNC Backgauge
CNC X-axis and R-axis
Precision CNC Positioning for X and R Axes

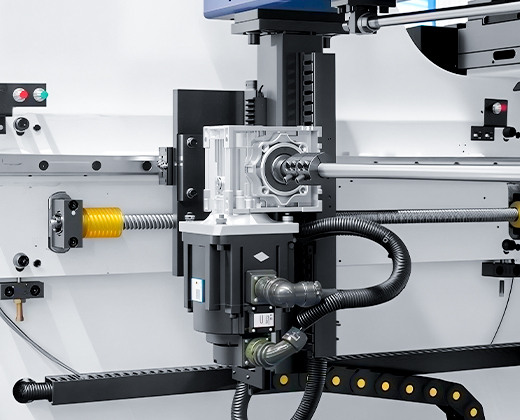

The X-axis utilizes linear guides, ball screws, and a servo motor drive system to ensure precise positioning.

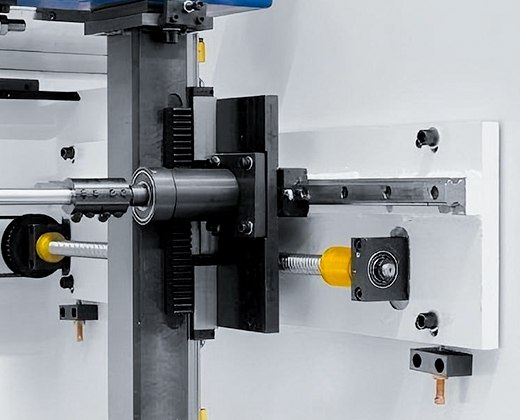

The R-axis employs a high-torque drive configuration consisting of spur gear guides, a high-power servo motor, and a gear reducer, delivering rapid response and precise coordinated positioning.
R-Axis Precision Synchronization Mechanism
It utilizes a high-rigidity solid steel shaft for power transmission, spur gears for synchronized positioning support, and high-strength bolted connections. Key features include precise synchronization, rapid response, low failure rates, ease of maintenance, and low internal stress.

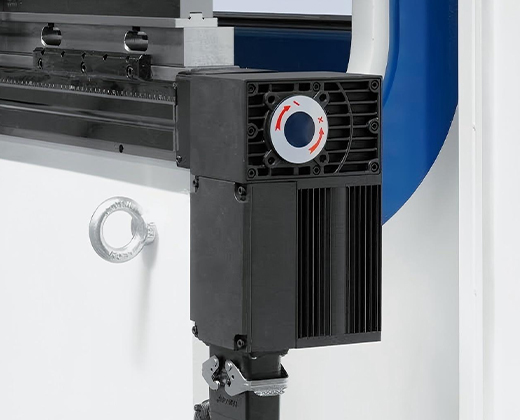

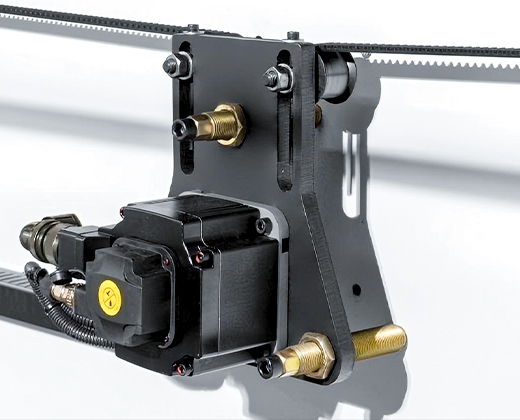

X-Axis Servo Motor
The X-axis is driven by an industrial-grade brushless servo motor paired with a low-noise synchronous belt, ensuring precise synchronization.
High Quality

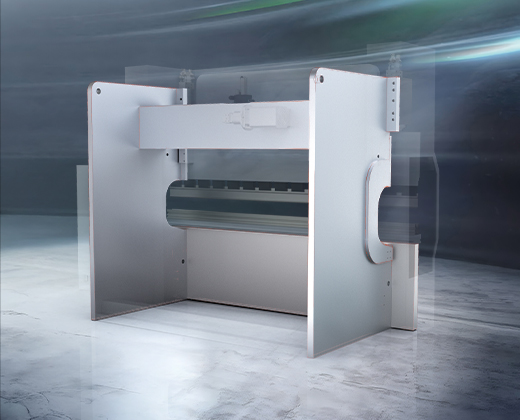

World-Class Carbon Steel Frame
Superior Stability & Enhanced Precision
The equipment features an ultra-thick carbon steel frame built to international standards, offering high rigidity, robust load-bearing capacity, and excellent impact resistance.
The frame utilizes a mortise-and-tenon structural design that fully reinforces the machine body, ensuring superior stability and thereby guaranteeing precision and consistency during the sheet metal bending process.
Our Bending Advantages
Product Parameters
CNC System
| Model | WE67K-40T/1600 | WE67K-63T/1600 | WE67K-80T/1600 | WE67K-100T/1600 | WE67K-160T/1600 |
| Nominal Pressure | 400KN | 630KN | 800KN | 1000KN | 1600KN |
| Foldable Board Width | 1600mm | 2200mm | 2500mm | 2500mm | 3200mm |
| Column Spacing | 1200mm | 1800mm | 2100mm | 2100mm | 2700mm |
| Slider Stroke | 120mm | 120mm | 120mm | 200mm | 200mm |
| Weight | 2500kg | 4000kg | 5000kg | 6000kg | 8500kg |
| Dimensions (L*W*H)(mm) | 2100*1600*2300mm | 2800*1650*2350mm | 3050*1700*2500mm | 3050*1700*2500mm | 3800*1750*2500mm |
| Main Motor Power | 5.5kw | 5.5kw | 7.5kw | 7.5kw | 11kw |
| Reture Speed | 200mm/s | 170mm/s | 150mm/s | 150mm/s | 140mm/s |
| Working Speed | 0-10mm/s | 0-10mm/s | 0-10mm/s | 0-10mm/s | 0-10mm/s |
| Drive Speed | 200mm/s | 180mm/s | 160mm/s | 160mm/s | 150mm/s |
| Throat Depth | 300mm | 250mm | 320mm | 400mm | 400mm |
| Slide Maximum Open Height | 450mm | 450mm | 450mm | 450mm | 450mm |
| KE15 (KT15) System | CYBBELEC CybTouch (Switzerland) | DELEM DA (Holland) |
| Model available KE15 (KT15) | Model options CT-8 CT-12 CT-15 | Models available DA53T DA58T DA66T DA69T |
| High-definition 15-inch color display | Large, high-contrast touch screen | 10.1-15" LCD TFT true color display |
| Can adaptto 4-8 axes | Selectable number of axes: Y1, Y2,X,R, A1,A2,V | Number of axes selectable: Y1, Y2,X,R,A1,A2,V |
| Graphic scanning, 2D/3D graphic display | 2D, 3D, graphic display, manual simulation | Deflection compensation control |
| Supports hybrid or pure electric bending machines | The "Easy Bend" page is easy to bend in a single pass | Profile-53TL off-line programming software |
| Enterprise digital management software connection | Ability to connect wirelessly, upgrade software and back up data | USB external interface |
 |  |  |
High-Quality
Industry-Standard Forged Steel Dies
This equipment features high-strength steel dies manufactured using mainstream international hot-forming processes.They offer exceptional resistance to deformation and a service life far exceeding the industry average.
HRC53±2
Maximum Hardness
2-4mm
Cutting Edge Depth
500,000+
Bending Cycles
Mechanical Deflection Compensation Table
Different tooling configurations can be selected based on industry applications.

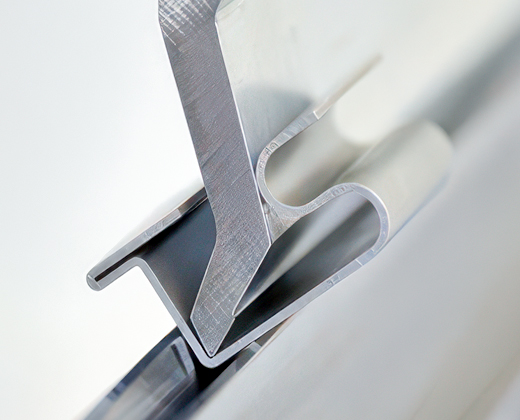

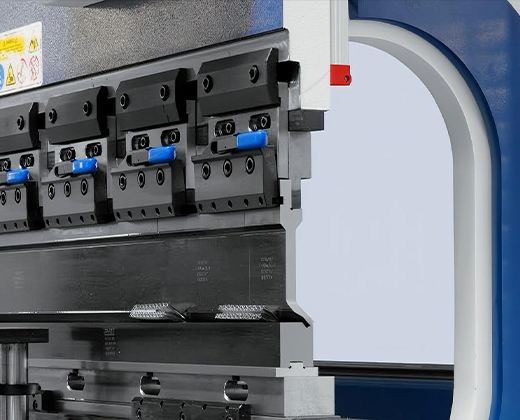

CNC Double-V Concentric Tooling
Users can choose between double-V concentric tooling and multi-V tooling based on their requirements, or opt for custom-made tooling. The tooling is manufactured via forging, ensuring high precision, high hardness, and excellent resistance to wear and impact.

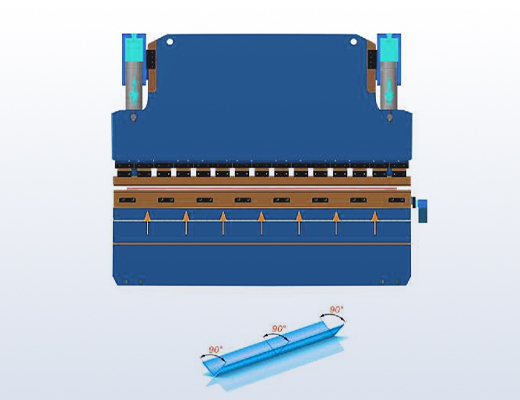

Mechanical Compensation Table (V-Axis)
Utilizes a high-precision mechanical deflection compensation system. With multiple compensation points, it achieves linear compensation during the bending process, thereby enhancing bending quality. The system is maintenance-free and offers superior compensation accuracy.

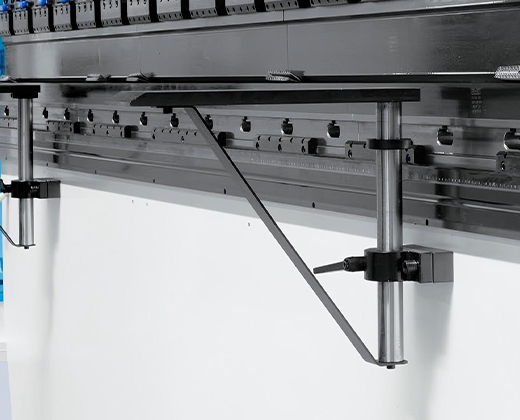

Front Material Support
Features a height-adjustable support rack made of solid steel; it is durable and allows for 180-degree rotation and adjustment.

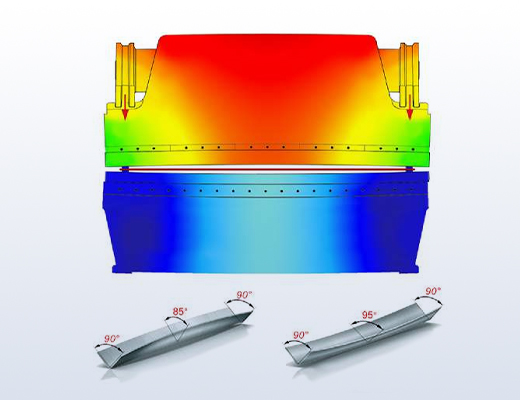

The V-axis, operating under computer numerical control (CNC), governs the workbench's height adjustment and provides accurate deflection compensation across its full span. The specific angle of each wedge's incline corresponds to the deflection curve, meticulously calculated through finite element analysis (FEA) of both the ram and the workbench's vertical plate structure.
During the workpiece bending process, load forces inevitably cause deflection. To counteract this, the CNC system precisely calculates the required compensation value. The system then automatically adjusts the relative positions of the convex wedges, effectively neutralizing the deflection and ensuring the final bend meets exact specifications.
WE67K-40T/1600
Model
400KN
Nominal Pressure
1600mm
Foldable Board Width
1200mm
Column Spacing
120mm
Slider Stroke
450mm
Slide Max Open Height
300mm
Throat Depth
200mm/s
Drive Speed
0-10mm/s
Working Speed
200mm/s
Reture Speed
5.5KW
Main Motor Power
WE67K-40T/1600
Model
400KN
Nominal Pressure
1600mm
Foldable Board Width
1200mm
Column Spacing
120mm
Slider Stroke
450mm
Slide Max Open Height
300mm
Throat Depth
200mm/s
Drive Speed
0-10mm/s
Working Speed
200mm/s
Reture Speed
5.5KW
Main Motor Power
WE67K-40T/1600
Model
400KN
Nominal Pressure
1600mm
Foldable Board Width
1200mm
Column Spacing
120mm
Slider Stroke
450mm
Slide Max Open Height
300mm
Throat Depth
200mm/s
Drive Speed
0-10mm/s
Working Speed
200mm/s
Reture Speed
5.5KW
Main Motor Power
WE67K-40T/1600
Model
400KN
Nominal Pressure
1600mm
Foldable Board Width
1200mm
Column Spacing
120mm
Slider Stroke
450mm
Slide Max Open Height
300mm
Throat Depth
200mm/s
Drive Speed
0-10mm/s
Working Speed
200mm/s
Reture Speed
5.5KW
Main Motor Power
WE67K-40T/1600
Model
400KN
Nominal Pressure
1600mm
Foldable Board Width
1200mm
Column Spacing
120mm
Slider Stroke
450mm
Slide Max Open Height
300mm
Throat Depth
200mm/s
Drive Speed
0-10mm/s
Working Speed
200mm/s
Reture Speed
5.5KW
Main Motor Power
WE67K-40T/1600
Model
400KN
Nominal Pressure
1600mm
Foldable Board Width
1200mm
Column Spacing
120mm
Slider Stroke
450mm
Slide Max Open Height
300mm
Throat Depth
200mm/s
Drive Speed
0-10mm/s
Working Speed
200mm/s
Reture Speed
5.5KW
Main Motor Power
WE67K-40T/1600
Model
400KN
Nominal Pressure
1600mm
Foldable Board Width
1200mm
Column Spacing
120mm
Slider Stroke
450mm
Slide Max Open Height
300mm
Throat Depth
200mm/s
Drive Speed
0-10mm/s
Working Speed
200mm/s
Reture Speed
5.5KW
Main Motor Power

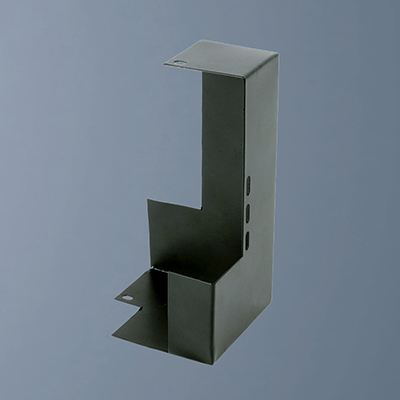

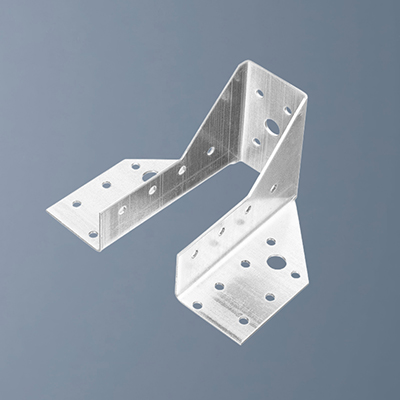

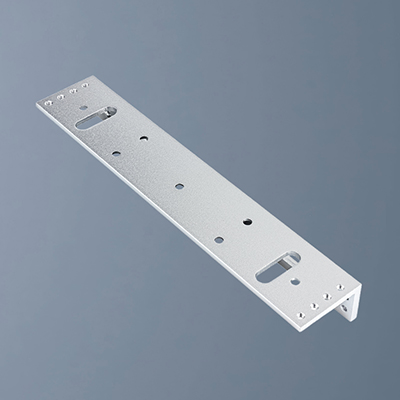

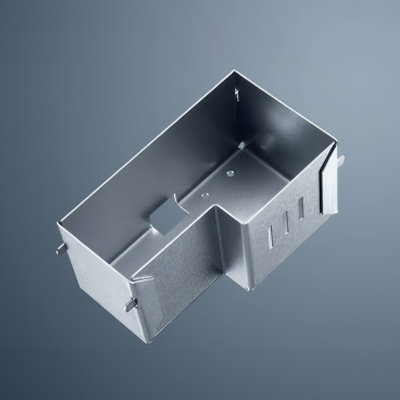

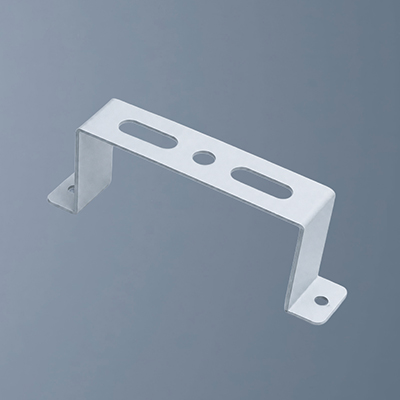

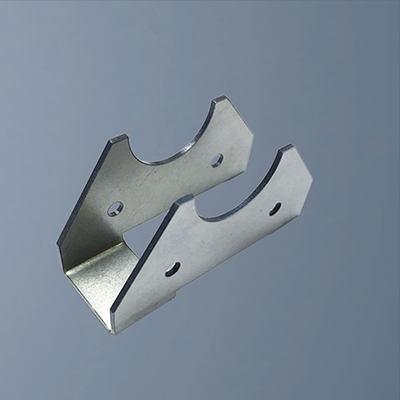

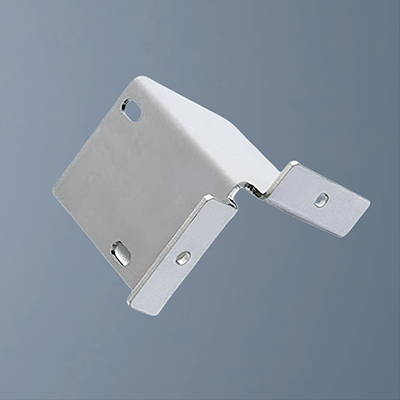

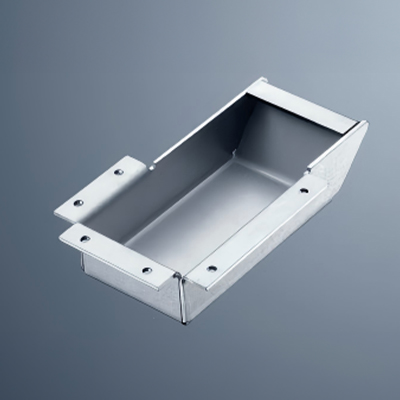

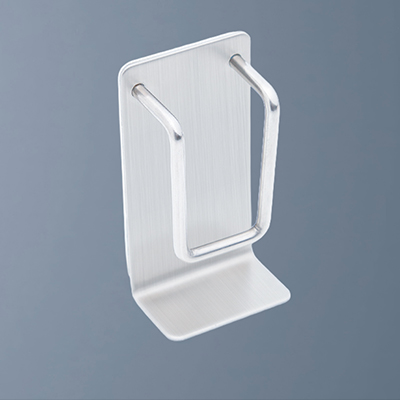

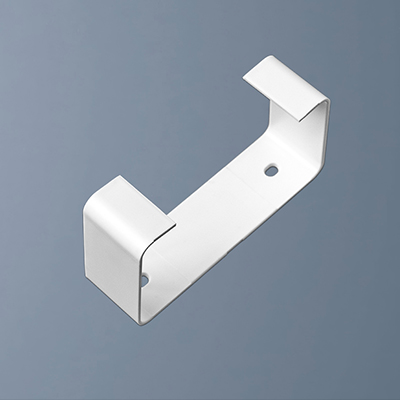

Precision in Every Bend: Flawless Sample Showcase
From complex multi-stage bending to precise angle control, see how our press brake delivers millimeter-level accuracy and zero-defect consistency.
Applicable Industries

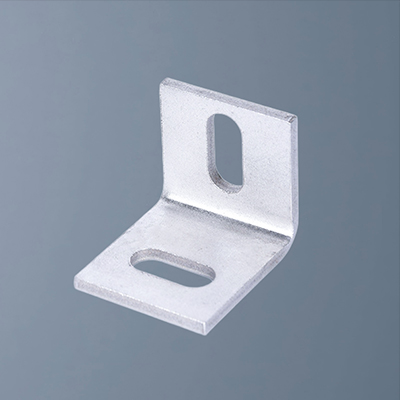

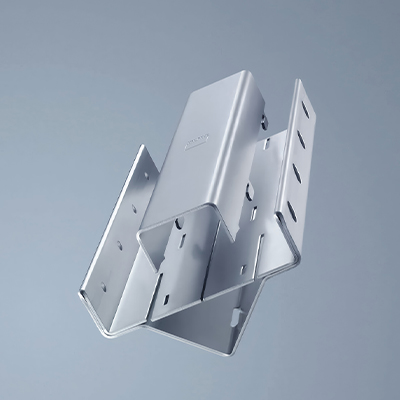

Widely utilized in a diverse range of industries, including hardware accessories, construction machinery, medical devices, outsourced processing, and photovoltaic equipment.
