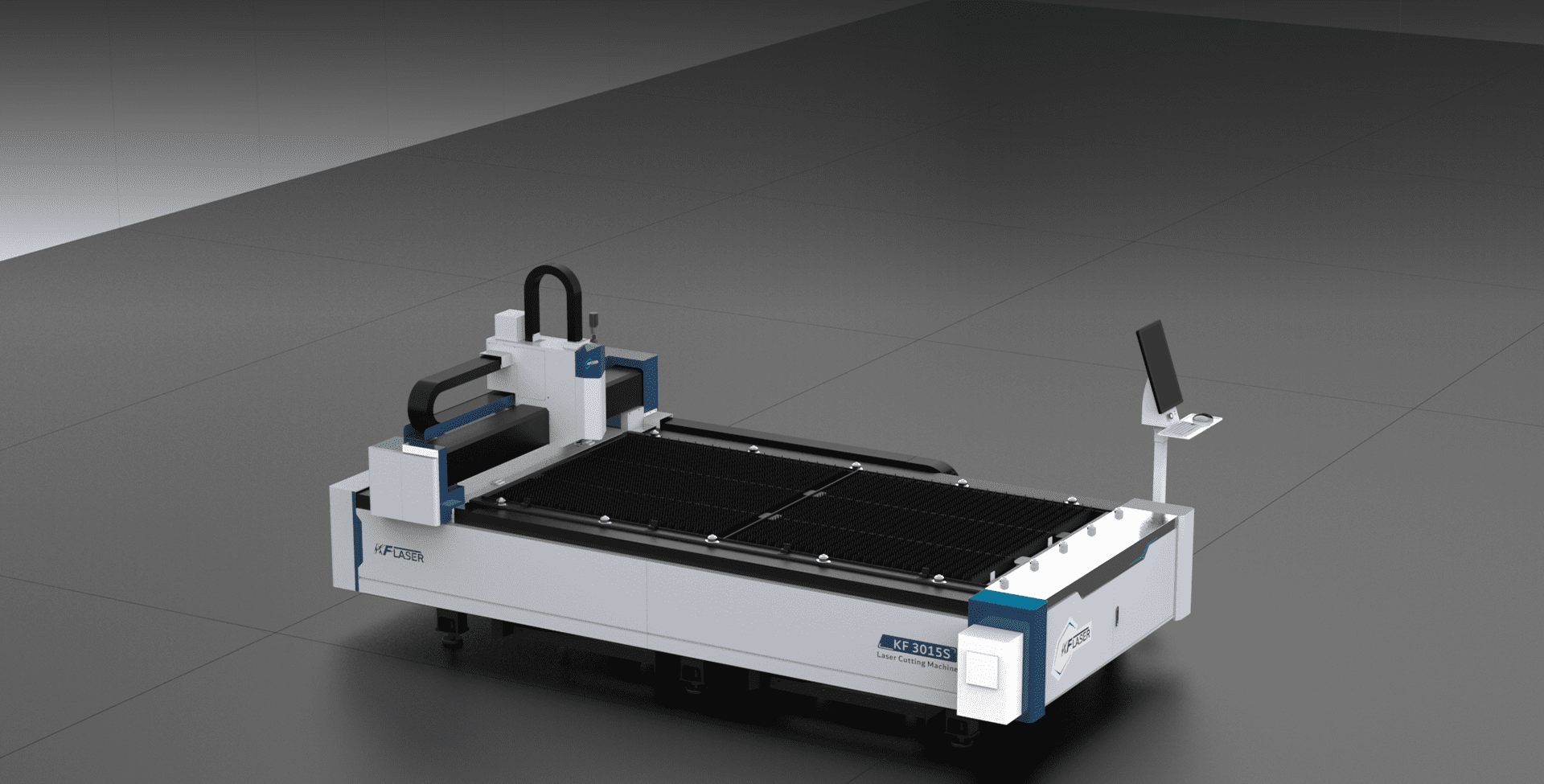

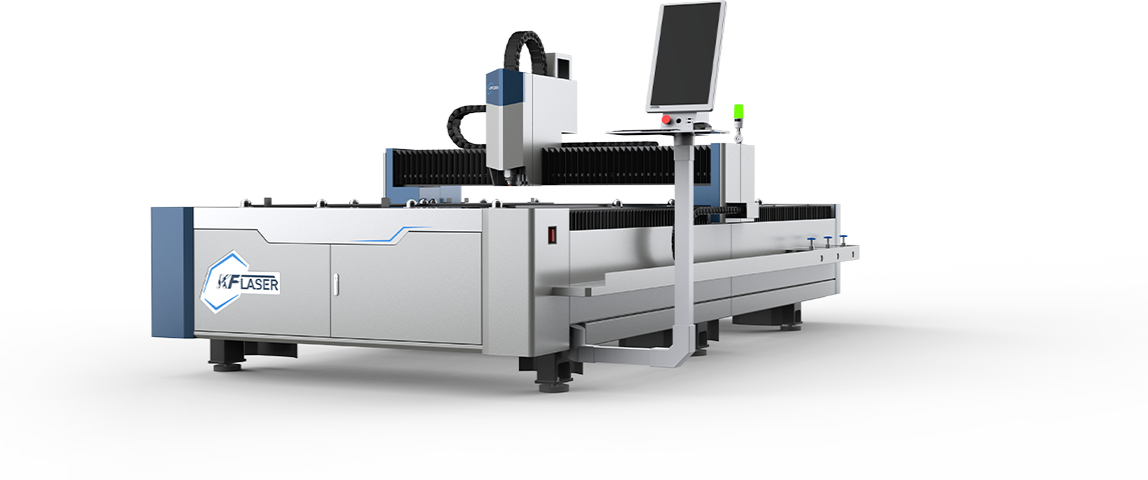

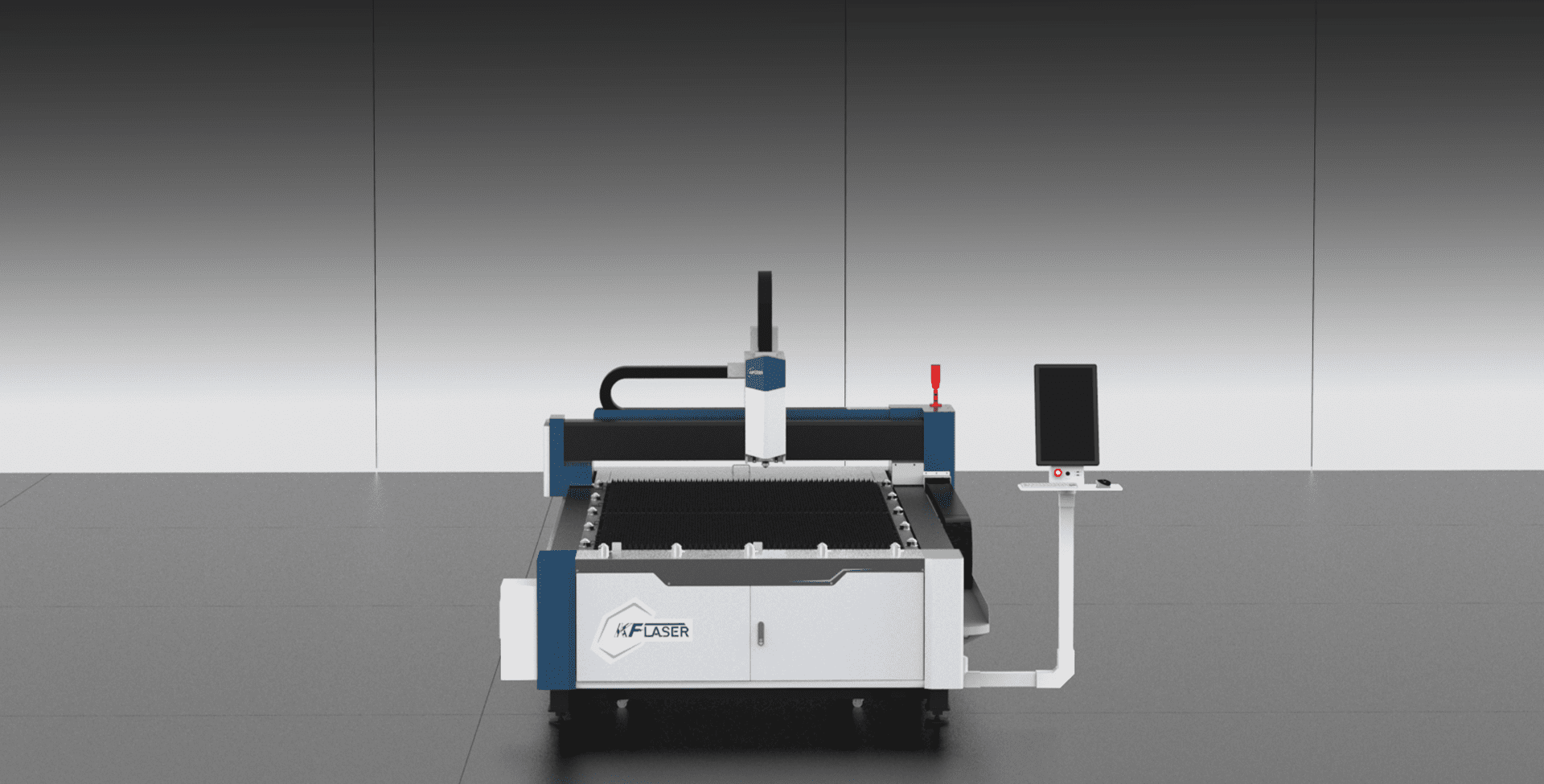

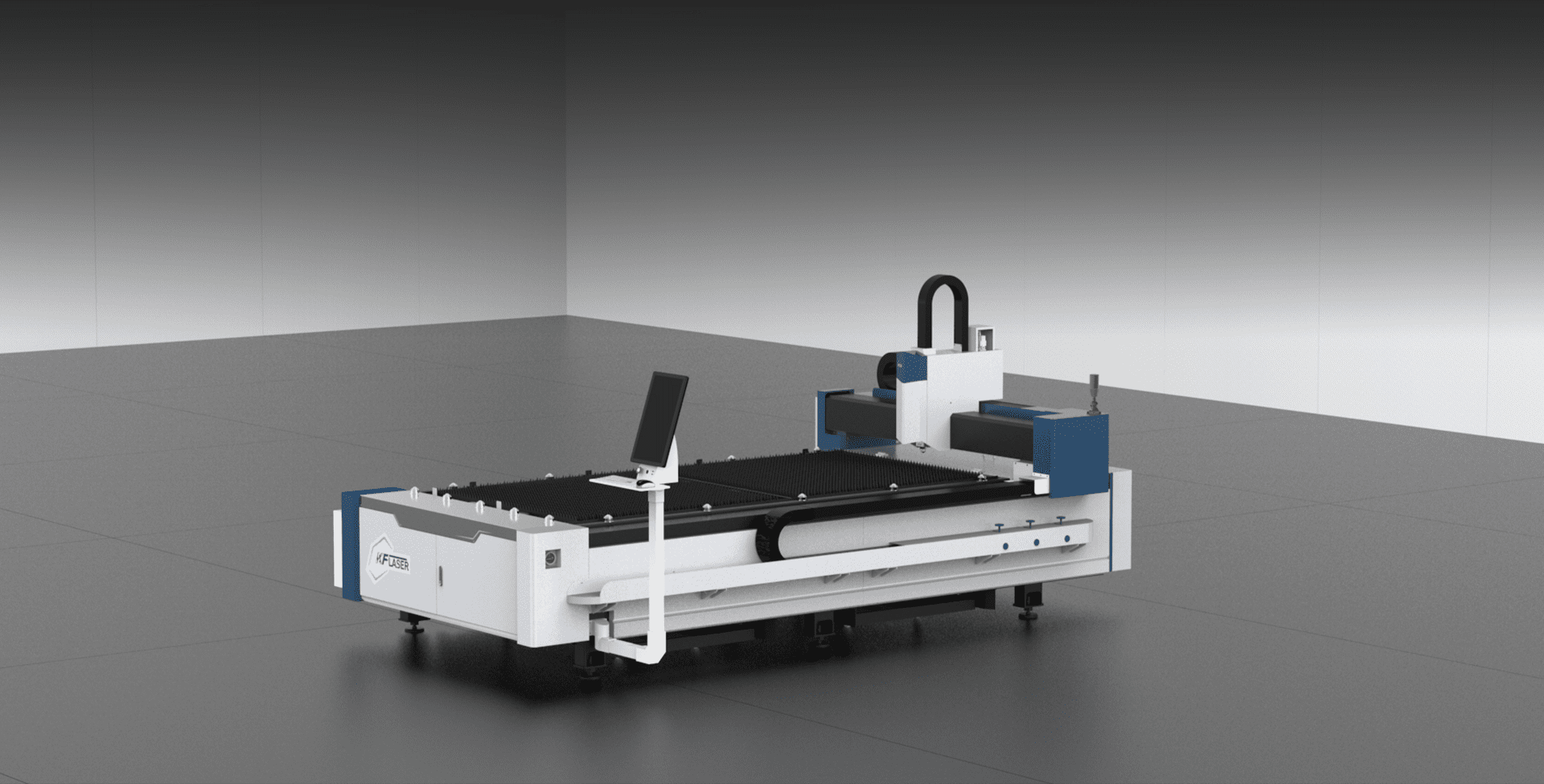

Standard Single Platform Metal Sheet Cutting Machine

S Series

PARAMETER

Model	S3	S4	S6
Working Area(mm)	3050*1530mm	4020*2030mm	6050*2530mm
Dimension (LWH)	450028001825mm	550032751855mm	740037001855mm
Power Support	1500-20000W
Maximum Idle Running Speed	100m/min
Maximum Idle Acceleration	1.2G
X/Y Axis Positioning Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.02mm

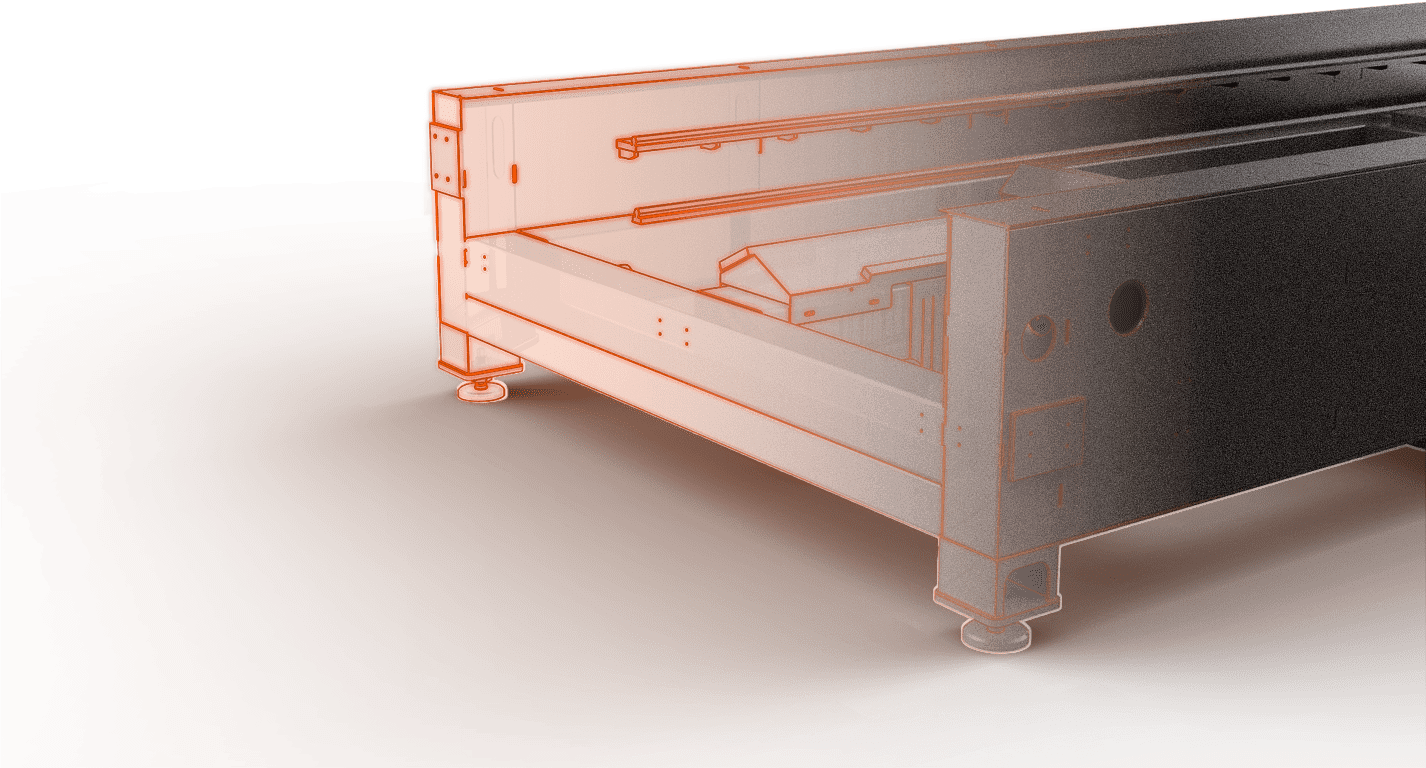

Reducing thermal deformation gradient

Thermally Symmetrical Structure Bed

30%

Rigidity Increased by

25%

Structural Strength Enhanced by

* Data obtained from laboratory analysis

Performance Parameters

Laser Cutting Capabilities

Advantages Of Laser Cutting

Superior performance for faster, smoother and more precise laser cutting

Power	Stainless Steel	Carbon Steel	Aluminum Alloy	Brass	Purple Copper
3000w	1-8mm	1-20mm	1-6mm	1-5mm	1-3mm
6000w	1-16mm	1-25mm	1-14mm	1-10mm	1-6mm
8000w	1-25mm	1-30mm	1-18mm	1-12mm	1-8mm
12000w	1-30mm	1-40mm	1-25mm	1-12mm	1-8mm
20000w	1-80mm	1-50mm	1-60mm	1-20mm	1-12mm

Optimize the laser cutting process, save time and effort, and achieve a more streamlined production process

Technology	Laser Cutting	Combustible Gas	Plasma Cutting	Stamping	Sawing	Linear Cutting	Water Cutting	Electro-Sparking
Carve	Very Small	Very Big	Bigger	Smaller	Bigger	Smaller	Bigger	Very Small
Deformation	Very Small	Serious	Bigger	Bigger	Smaller	Very Small	Small	Very Small
Accuracy	High	Low	Low	Low	Low	High	High	High
Graphic Update	Very Easy	More Difficulty	Easier	Difficulty	It failed	Easy	Easy	Easy
Speed	Higher	Lower	High	High	Very Slow	Very Slow	Higher	Very Slow

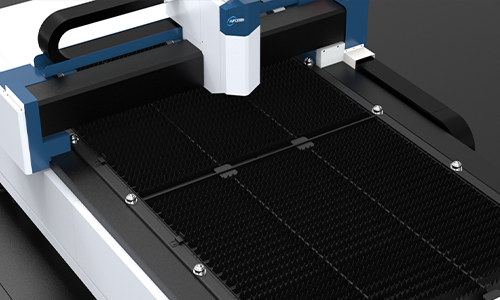

Intelligent Dust Removal for Clean Production

Large-diameter air duct design Independent control for zone dust removal enhance smoke and heat exhaust effects

The Machine Features

Aerospace Aluminum Beam

30%

Weight Reduced by

25%

Structural Strength Enhanced by

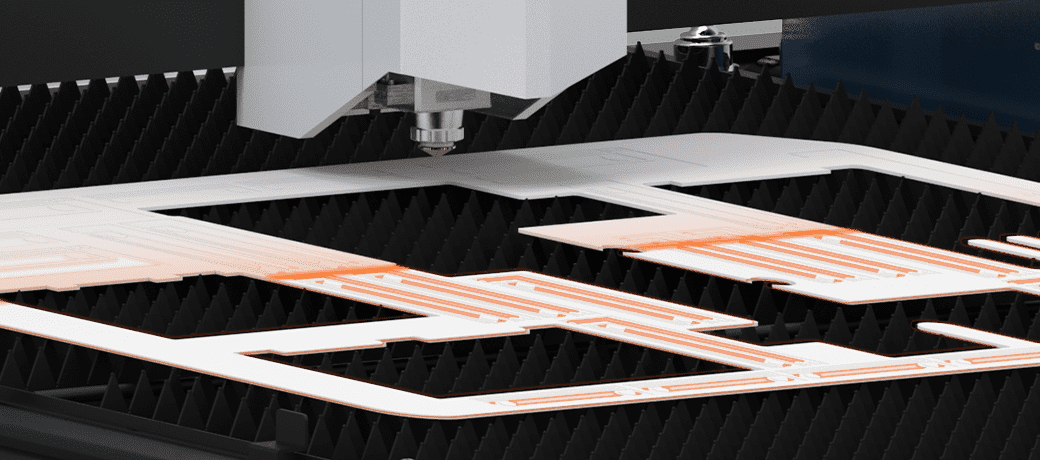

Remnants Layout

Secondary layout of remnants. Even waste - can create new value.

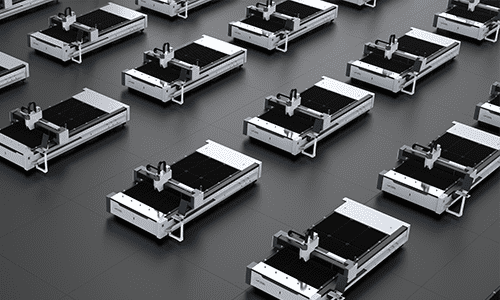

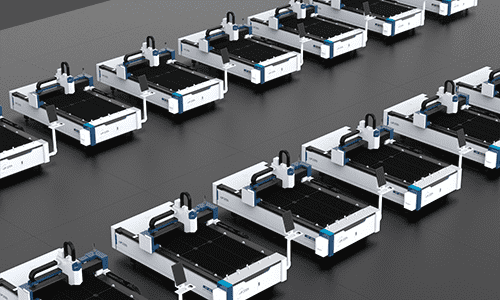

Adequate Stock

Available in a variety of sizes, find the one that's right for you!

Applicable Industries

Widely utilized in a diverse range of industries, including hardware accessories, construction machinery, medical devices, outsourced processing, and photovoltaic equipment.

Standard Single Platform Metal Sheet Cutting Machine

S Series

Reducing thermal deformation gradient

Thermally Symmetrical Structure Bed

30%

Rigidity Increased by

25%

Structural Strength Enhanced by

Performance Parameters

Superior performance for faster, smoother and more precise laser cutting

Optimize the laser cutting process, save time and effort, and achieve a more streamlined production process

Intelligent Dust Removal for Clean Production

Large-diameter air duct design Independent control for zone dust removal enhance smoke and heat exhaust effects

The Machine Features

Aerospace Aluminum Beam

30%

Weight Reduced by

25%

Structural Strength Enhanced by

Remnants Layout

Secondary layout of remnants. Even waste - can create new value.

Adequate Stock

Available in a variety of sizes, find the one that's right for you!

Request A Quote

Regardless of whether you require general advice or specific support, we are happy to help you
