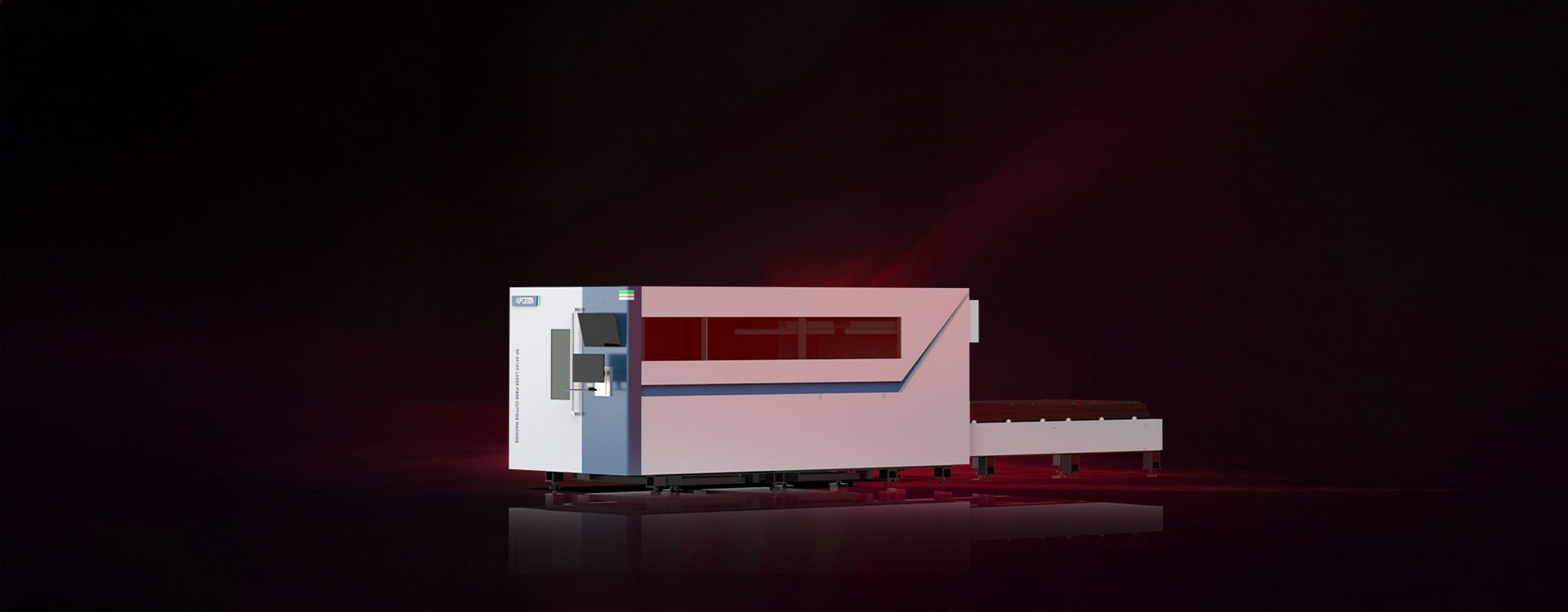

Swappable Workbench and Closed Design

K Series

af211b35-ed5f-46fa-b2ce-7395c8e574e2-gigapixel-standard-v2-2x

High-end Laser Cutting

The K Series is capable of cutting metal materials of varying thicknesses, increasing laser cutting productivity and the diversity of use cases.

Superior Performance

K series delivers top-notch quality, allowing for faster, smoother, and more precise laser cutting. An ideal choice to meet your high standards.

Time Efficiency

K series saves time and efforts by optimizing the laser cutting process to achieve a more streamlined production.

Full Range of Display

Drag the image to view it in all directions

PARAMETER

Model	K3	K4	K6
Working Area(mm)	3050*1530mm	4100*2050mm	6100*2550mm
Dimension (LWH)	830031002400mm	1030036002400mm	1430041002400mm
Power Support	1500-30000W	1500-40000W	1500-40000W
Maximum Idle Running Speed	150m/min
Maximum Idle Acceleration	1.5G
X/Y Axis Positioning Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.02mm
Exchange Table Moving Time	10s

Reducing thermal deformation gradient

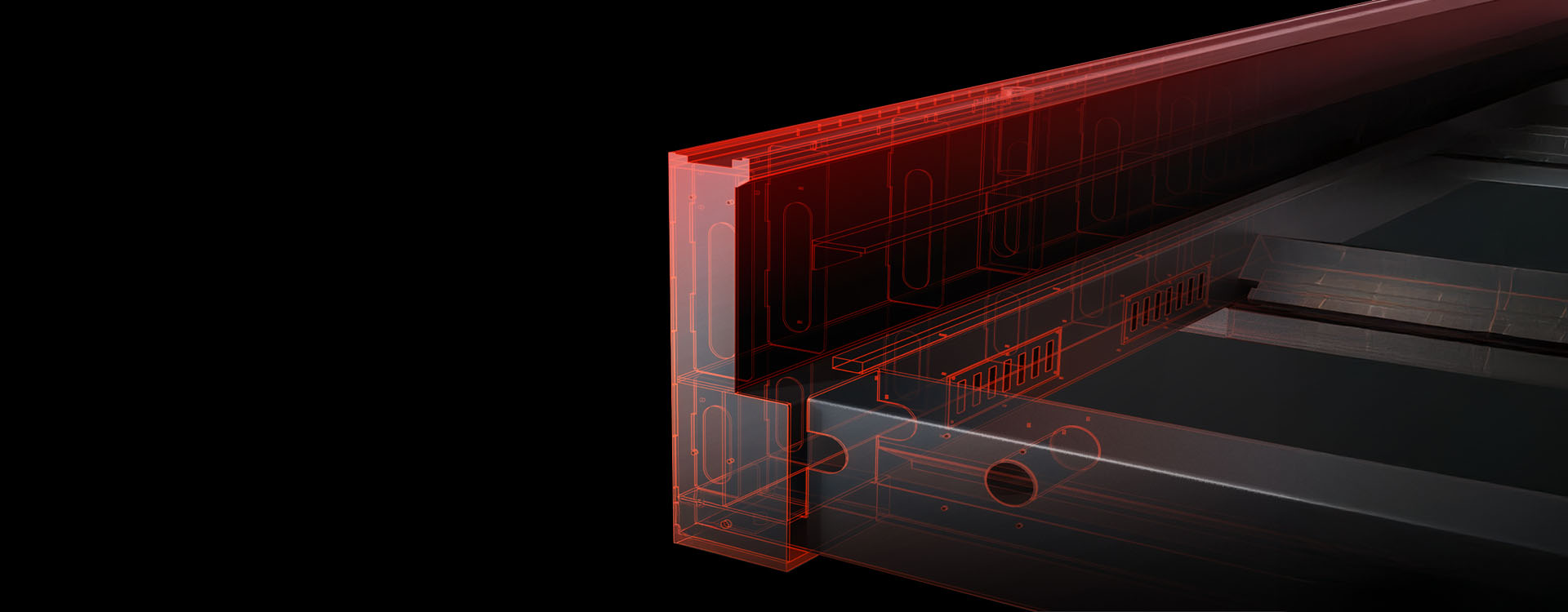

Thermally Symmetrical Structure Bed

30%

Rigidity

Increased by

25%

Structural Strength Enhanced by

* Data obtained from laboratory analysis

Performance Parameters

Laser Cutting Capabilities

Advantages Of Laser Cutting

Superior performance for faster, smoother and more precise laser cutting

Power	Stainless Steel	Carbon Steel	Aluminum Alloy	Brass	Purple Copper
3000w	1-8mm	1-20mm	1-6mm	1-5mm	1-3mm
6000w	1-16mm	1-25mm	1-14mm	1-10mm	1-6mm
8000w	1-25mm	1-30mm	1-18mm	1-12mm	1-8mm
12000w	1-30mm	1-40mm	1-25mm	1-12mm	1-8mm
20000w	1-80mm	1-50mm	1-60mm	1-20mm	1-12mm

Optimize the laser cutting process, save time and effort, and achieve a more streamlined production process

Technology	Laser Cutting	Combustible Gas	Plasma Cutting	Stamping	Sawing	Linear Cutting	Water Cutting	Electro-Sparking
Carve	Very Small	Very Big	Bigger	Smaller	Bigger	Smaller	Bigger	Very Small
Deformation	Very Small	Serious	Bigger	Bigger	Smaller	Very Small	Small	Very Small
Accuracy	High	Low	Low	Low	Low	High	High	High
Graphic Update	Very Easy	More Difficulty	Easier	Difficulty	It failed	Easy	Easy	Easy
Speed	Higher	Lower	High	High	Very Slow	Very Slow	Higher	Very Slow

The Machine Features

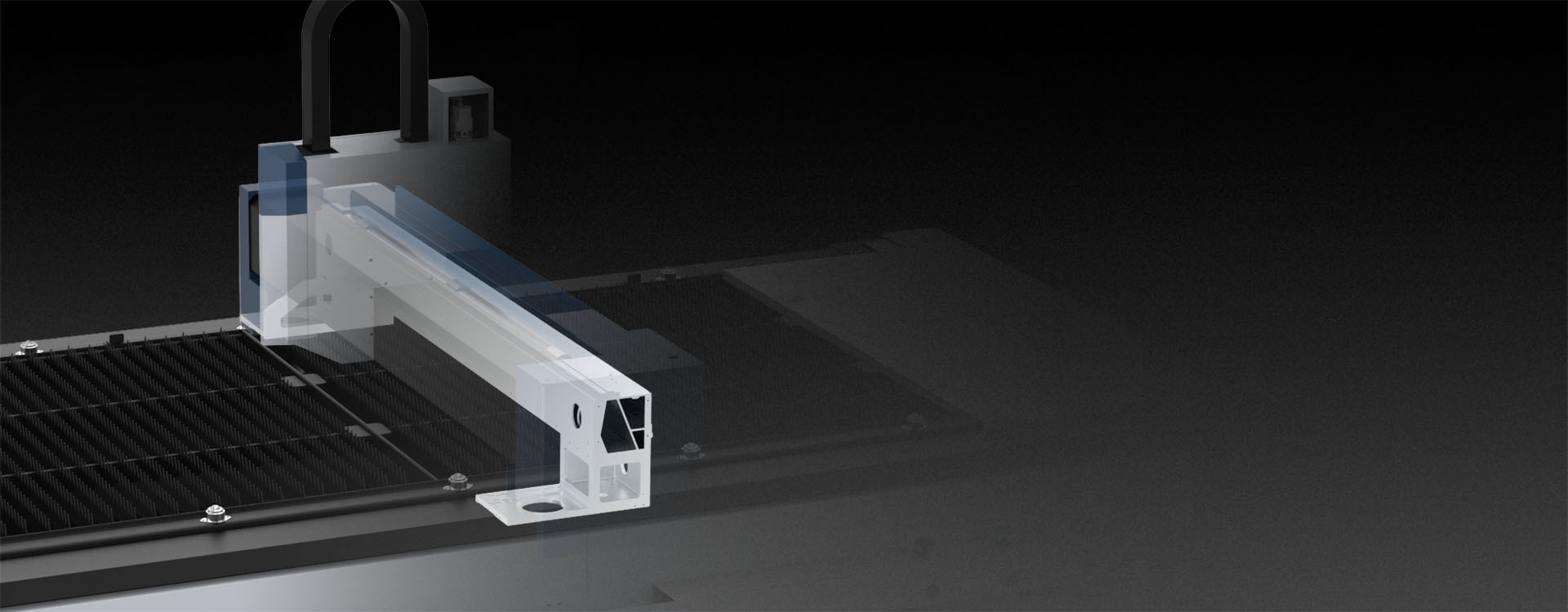

Aerospace Aluminum Beam

30%

Weight

Reduced by

25%

Structural Strength

Enhanced by

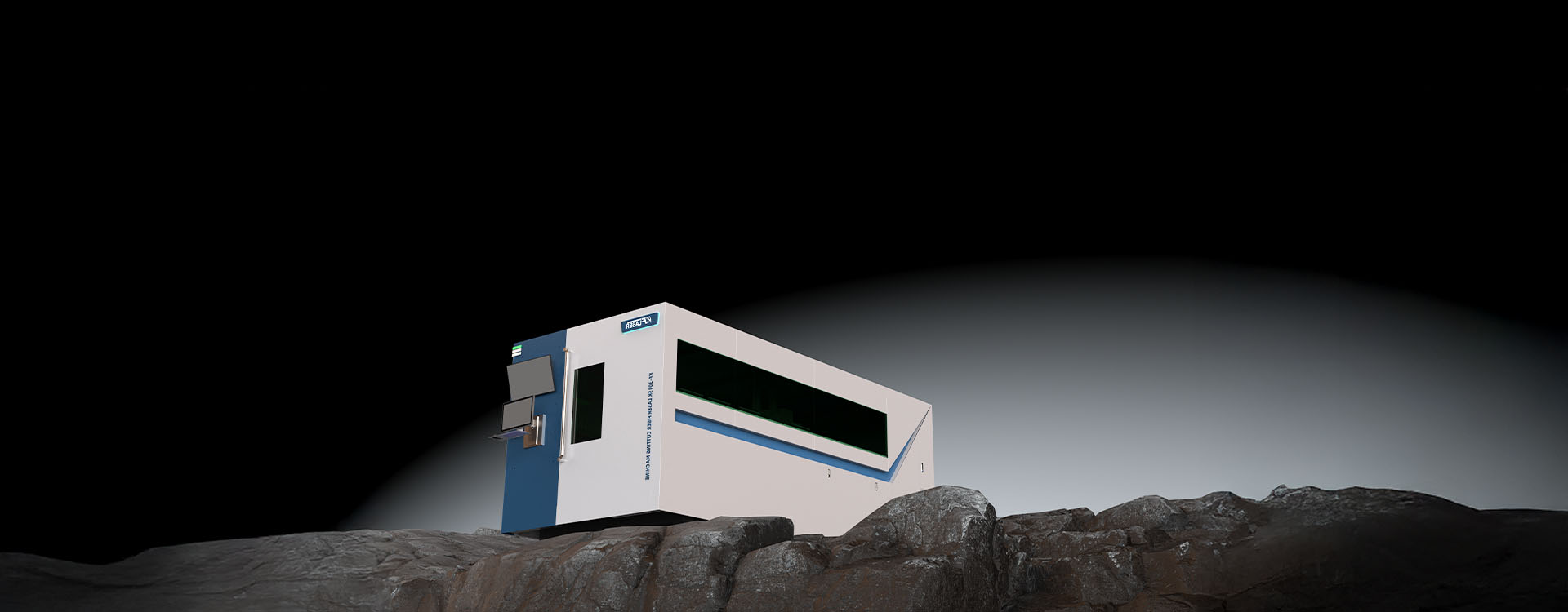

Enclosed with Camera

Environmentally friendly and convenient for monitoring

cutting conditions

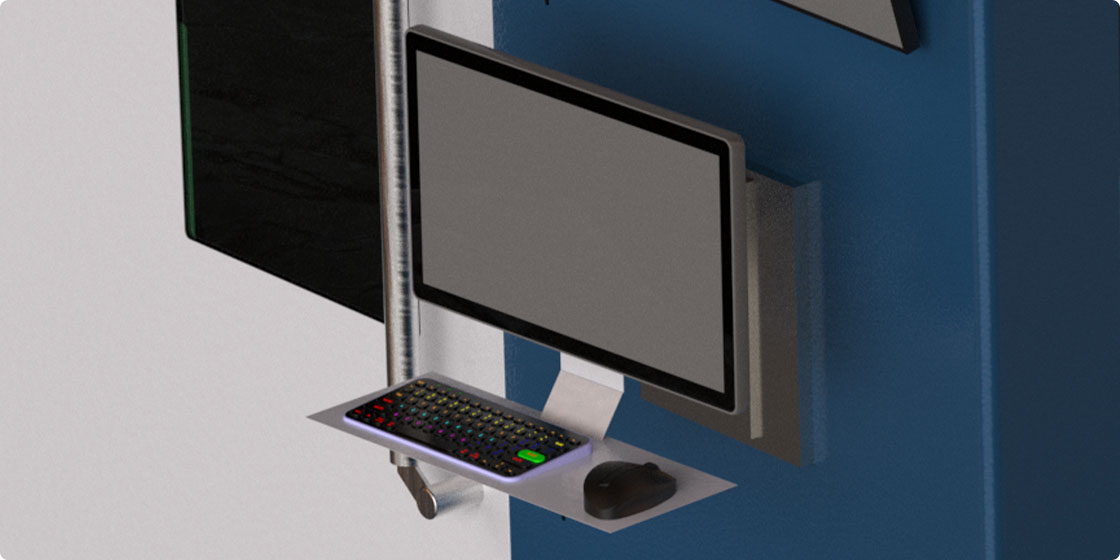

Easy to operate

Built-in Parameters No Need to Adjust

Import drawings

Select crafts

One-click operation

Built-in a large number of parameters and multiple preset modes, can adapt to different materials and thicknesses of plates, one-click selection can achieve precise cutting

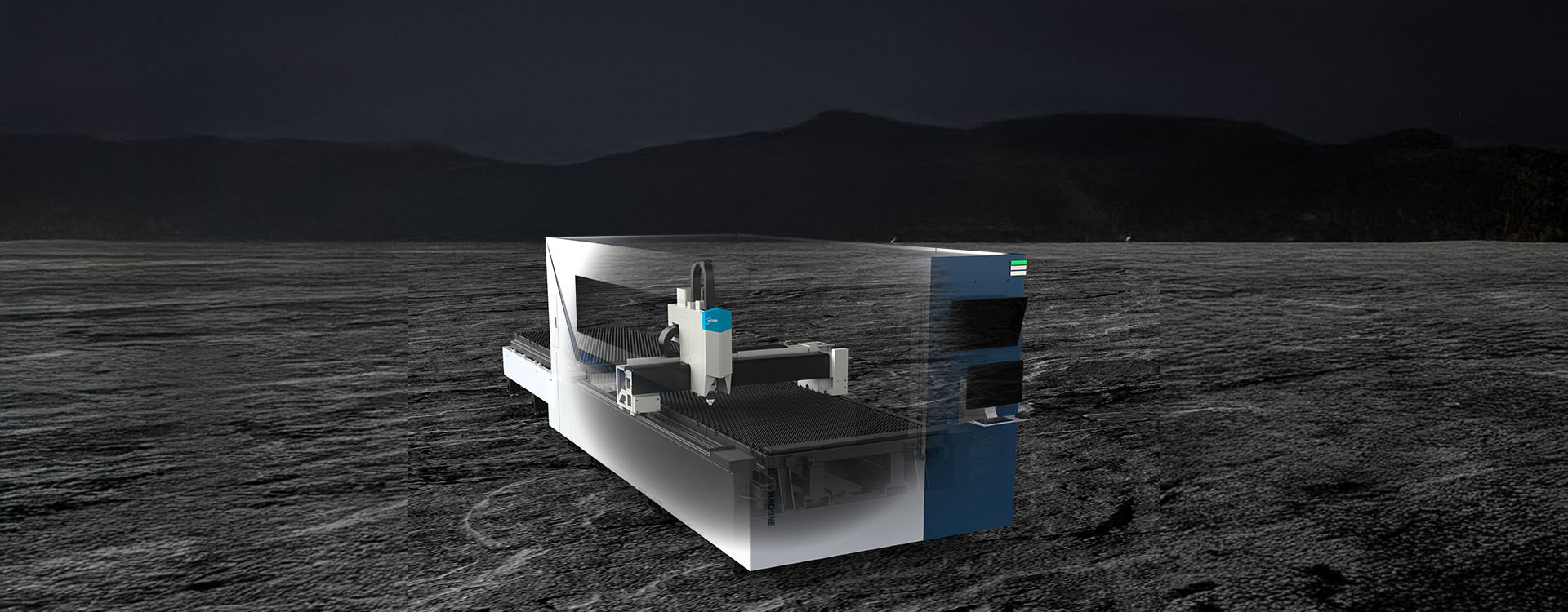

Surrounding Design, Environmentally Friendly

Comply with European protection standards, the cutting smoke is clean inside, effectively preventing safety hazards caused by sparks

Stop When the Door Opens

All-day Protection

-Stop when the door is opened, automatic alarm,

-upgraded protection,

-ensure the safety of operators.

Multiple Bevel Cutting

Support A-type, V-type, Y-type, X-type, K-type bevel cutting

Applicable Industries

Widely utilized in a diverse range of industries, including hardware accessories, construction machinery, medical devices, outsourced processing, and photovoltaic equipment.
