Automate More Than Welding

From Thin Sheet to Heavy-Duty Fabrication

≤45 mm

Max. Weld Thickness

6-Axis

Cobot Arm

100 Sets

Weld Parameters

Collaborative robots are transforming welding across automotive, machinery, electronics, and aerospace. With easy operation, flexible deployment, enhanced safety, and independently developed core components, they simplify complex welding tasks. They accelerate the shift from manual welding to flexible automated production.

Unique arm structure

Higher precision

Superior reach

Efficient teaching

Adaptable to diverse welding environments

Higher Precision

Precision welding;

simultaneous improvements in

quality and efficiency

Rapid Teaching

Integrated end-effector

force control and

AI vision

Weld Both Thin & Thick Plates！

M350A and M500A configurations cover a wider range of welding tasks, with catalog-listed welding thicknesses of up to 20 mm and 45 mm respectively. Compatible with 0.8 / 1.0 / 1.2 / 1.4 / 1.6 mm welding wire.

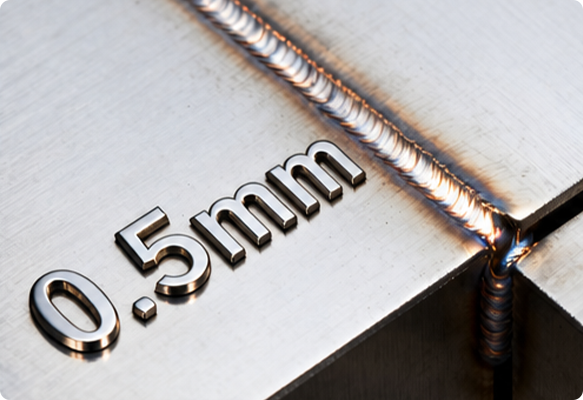

0.5MM thin plate

40MM thick plate

Multi-Size Welding Wire Compatibility

MIG collaborative robots balance welding speed, penetration depth, and production flexibility, making them suitable for automated welding of common metal structural components such as carbon steel and stainless steel.

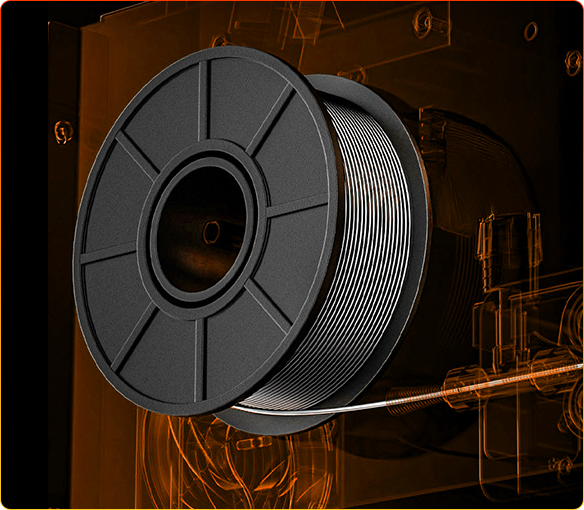

Built-In 20 kg Wire Spool

A built-in 20 kg wire spool provides greater wire capacity for continuous and efficient welding operations.

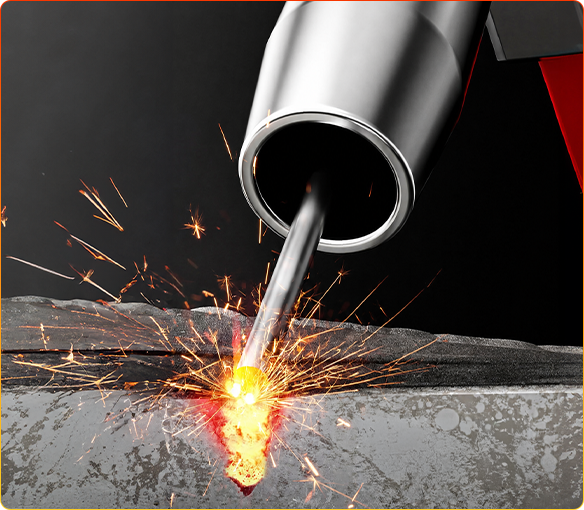

Stable Penetration for Consistent Weld Quality

Maintain a uniform weld depth and stable arc performance across repeated joints, helping deliver reliable weld strength, consistent appearance and repeatable production results.

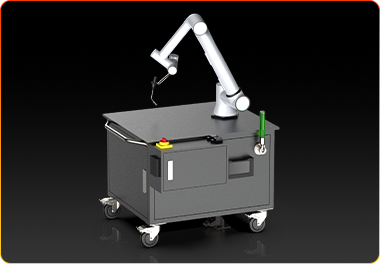

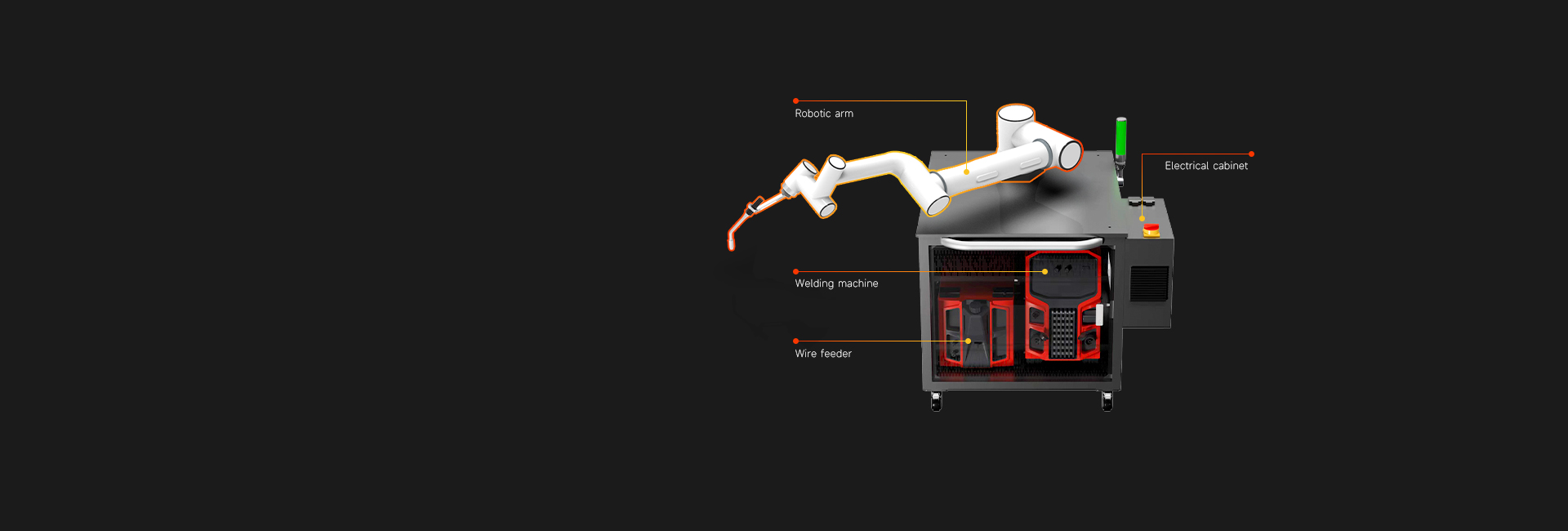

Mobile,

Integrated Welding Cell

Move the Welding Cell to Where Work Happens

* The cobot, control cabinet, welding power source and auxiliary modules are integrated into a compact

mobile unit with casters for flexible deployment between workstations.

MORE WELDING OPTIONS

Expand your welding skills

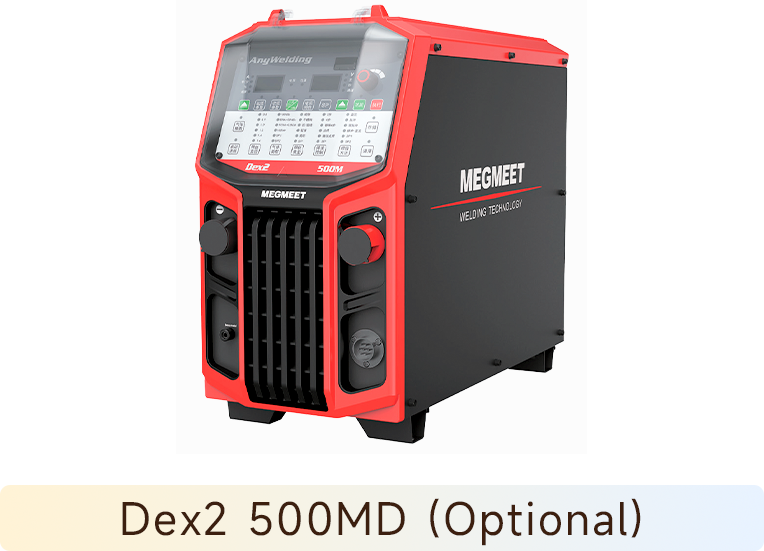

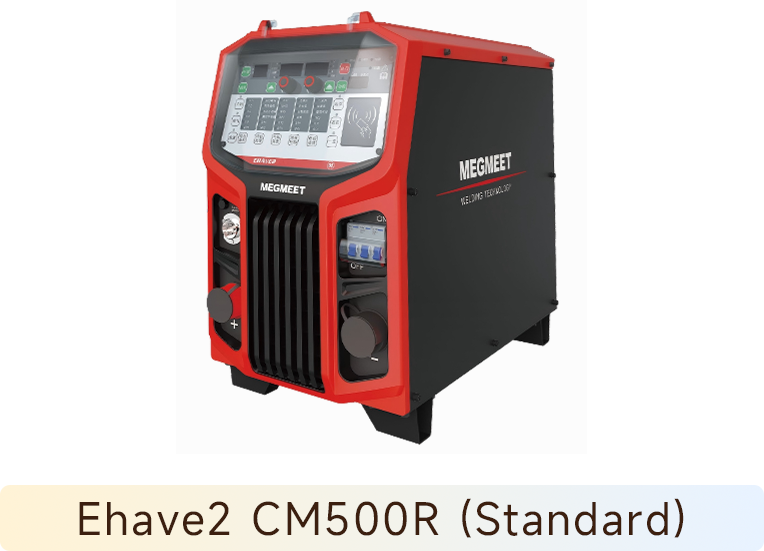

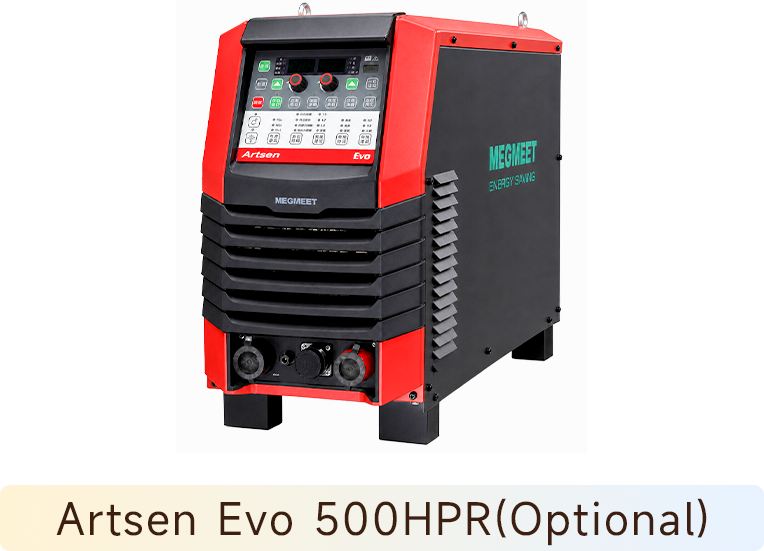

Product Image

Control Method	All-digital	All-digital	Digital IGBT Control
Input VoltageInput Voltage	3-phase 380V (±25%)	3-phase 380V (±15%)	3-phase AC 380 V (±25%)
Input Frequency (Wideband)	50-60 Hz	45 ~ 65 Hz	40~70Hz
Input Capacity	23.1 KVA / 21.7 KW	24 KVA / 22.3 KW	23.3 KVA / 21.4 KW
Input Power Factor	0.94	0.93	0.92
Efficiency	90%	90.40%	91% @500A
Rated Open-Circuit Voltage	73 V	85 V	77 V
Rated Output Current	500 A	500 A	500 A
Given Current Range	——	30 ~ 500 A	30 ~ 500 A
Given Voltage Range	12 ~ 45 V	12 ~ 45 V	12 ~ 45 V
Rated Duty Rate	100% @ 500A	100% @ 500A	100% @ 500A
Insulation Class	F (reactor H)	H	H
Protection Class	IP23	IP23 S	IP23 S
Ambient Temperature	-10 ℃ ~ +40 ℃	-10 ℃ ~ +40 ℃	-10 ℃ ~ +40 ℃
Dimensions (L×W×H)	684 × 320 × 580 mm	620 × 300 × 480 mm	647 × 291 × 572 mm
Weight	37 kg	51.7 kg	37 kg
Parameter Channel Storage	99	——	50
Electromagnetic Compatibility	Class A	——	——
Surge Protection Rating	Class D	——	——
Energy Efficiency (Energy Saving)	Level 1	——	——
Wire Feed Drive Control Method	High-Frequency Back EMF Control	——	——
Inverter Switching Frequency	——	——	110kHz
Rated Output Voltage	——	——	39V
Output Characteristics	——	——	CV
Wire Feed Speed	——	——	0.5~28 m/min
Cooling Method	——	——	Forced Air Cooling
DC	●	——	●
Carbon Steel	●	——	●
Stainless Steel	●	——	●
Aluminum Alloy	——	——	——
Simple TIG	●	——	——
MMA	●	——	——
Carbon Arc Gouging	●	——	——
High-Speed Welding Mode	●	——	——
Standard Pulse	——	——	——
Critical Pulse	——	——	——
Carbon Steel Metal Core State	——	——	——
Software Low Splash	——	——	●

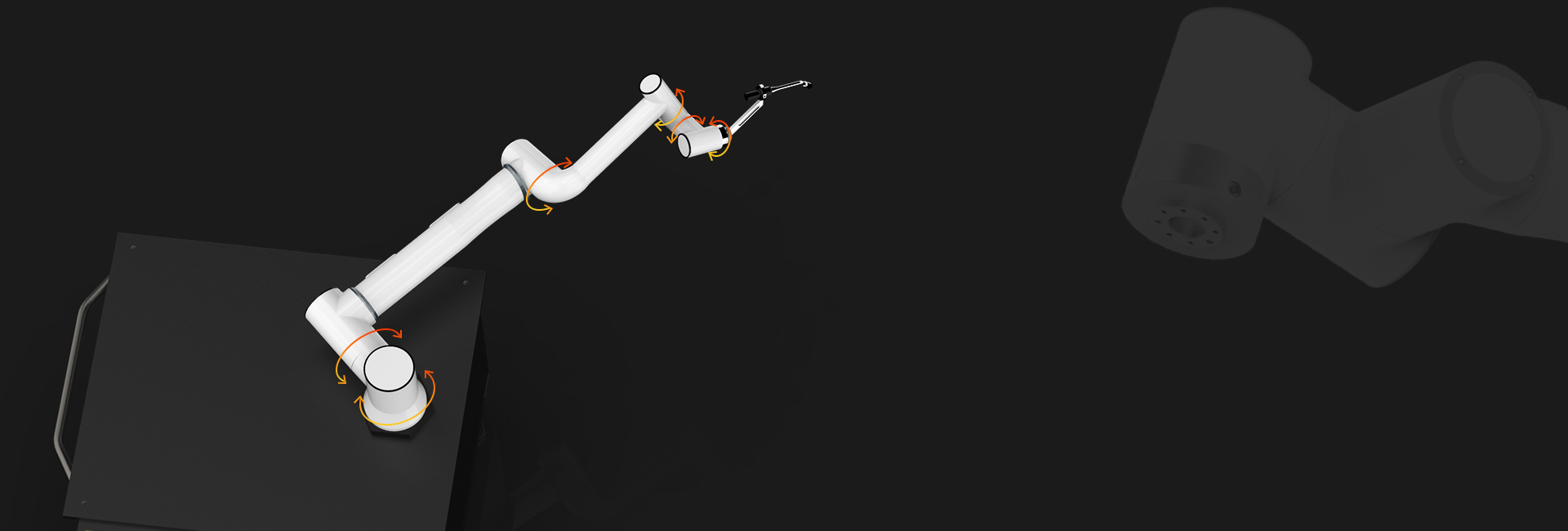

6-Axis Cobot Flexibility

Reach More Welds from More Angles

* With six articulated joints, DN3 and DN5 cobot options can approach complex welds

from multiple directions.

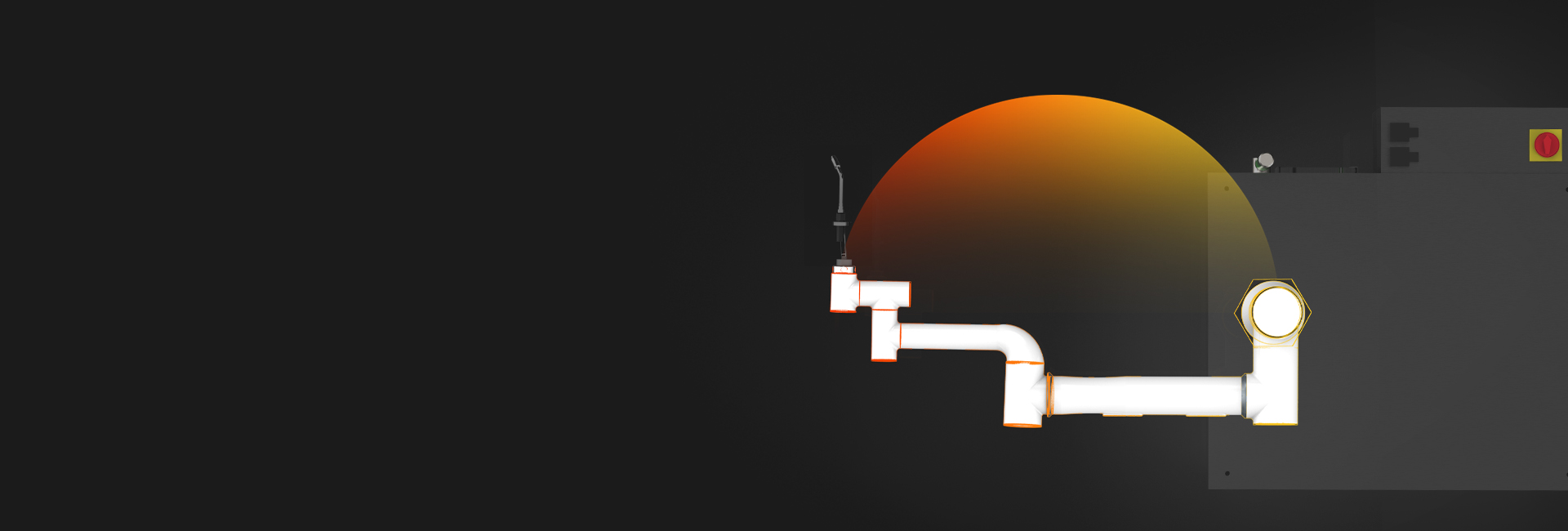

Extended Reach for Greater Welding Coverage

The optimized arm structure expands the working envelope, helping the cobot access more welding positions and handle larger workpieces with greater flexibility.

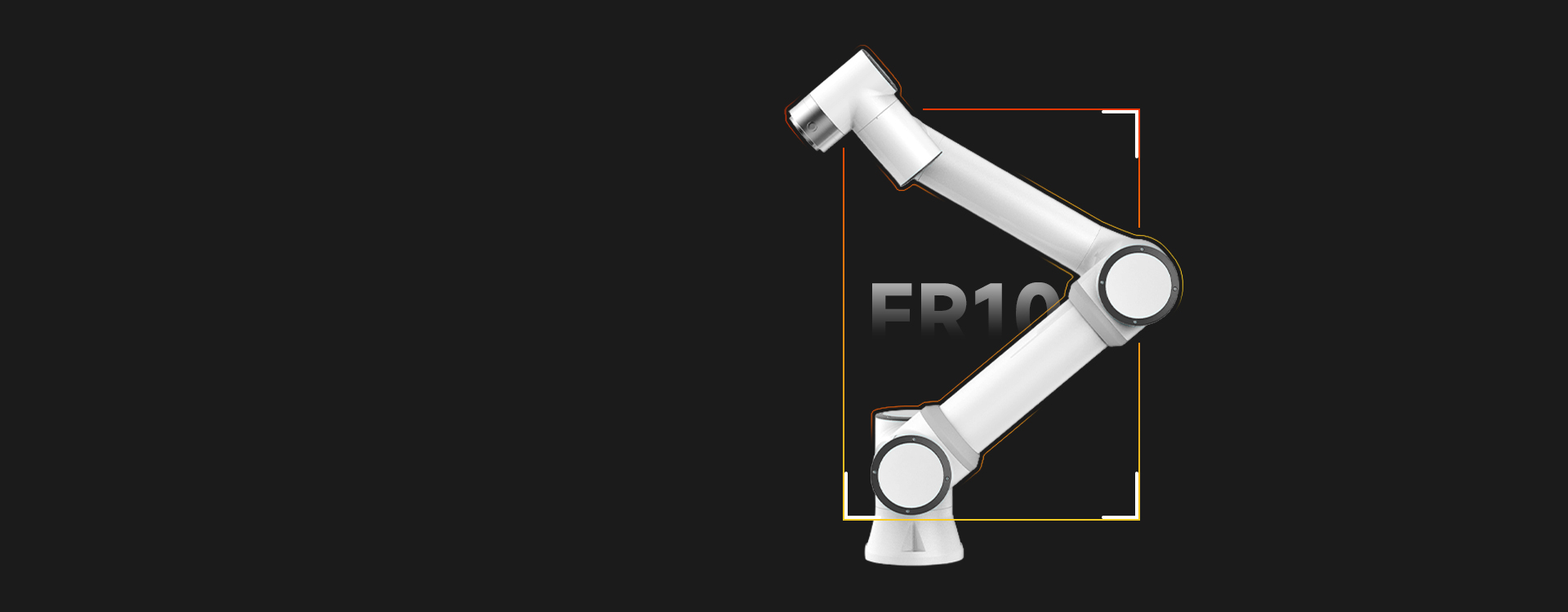

Robot Model：FR10

HMI：10.1 inch teach pendant or mobile terminal Web APP

Reach：1400mm

Operating humidity：<90% RH(non-condensing)

Typical TCP speed：1.5 m/s

Interface & openness：TCP/IP、RS485

Footprint：190mm

Operating temperature：0-45℃

Weight：≈40kg

Communication interface：C / C++ / Lua / Python / ROS

Robot mounting：Any orientation

Repeatability：±0.05mm

IP classification：IP66

Degrees of freedom：6 rotating joints

I/O Ports (Digital)：DI 16 / DO 16

I/O Ports (Analog)：AI 2 / AO 2

Power supply：24V / 1.5A

Noise：<65 dB

Payload：10 kg

Materials：Aluminium / Steel

Weld More Workpieces with Ease

Explore MIG welding samples across different workpieces and joint configurations, and see how collaborative robot technology helps achieve stable penetration, consistent bead formation and reliable welding quality.

Stainless steel welding

Thin iron welding

Door and window welding

Angle iron welding

Fence welding

Steel shed welding

Pipe welding

Iron cage welding

Industries We Serve

Designed for flexible MIG welding across a wide range of metal manufacturing applications, from sheet metal fabrication and machinery production to automotive components, metal furniture and structural assemblies.
