High-Performance Full-Enclosure Dual-Platform Fiber Laser Cutting Machine: The Ultimate Guide To The K-Series

In the competitive landscape of global metal fabrication, efficiency, precision, and safety are non-negotiable. The K-Series Full-Enclosure Dual-Platform Fiber Laser Cutting Machine is engineered to meet these demands, offering a robust solution for heavy-duty industrial applications.

Available in three versatile specifications—3015K, 4020K, and 6025K—this series sets a new benchmark for high-power sheet metal processing.

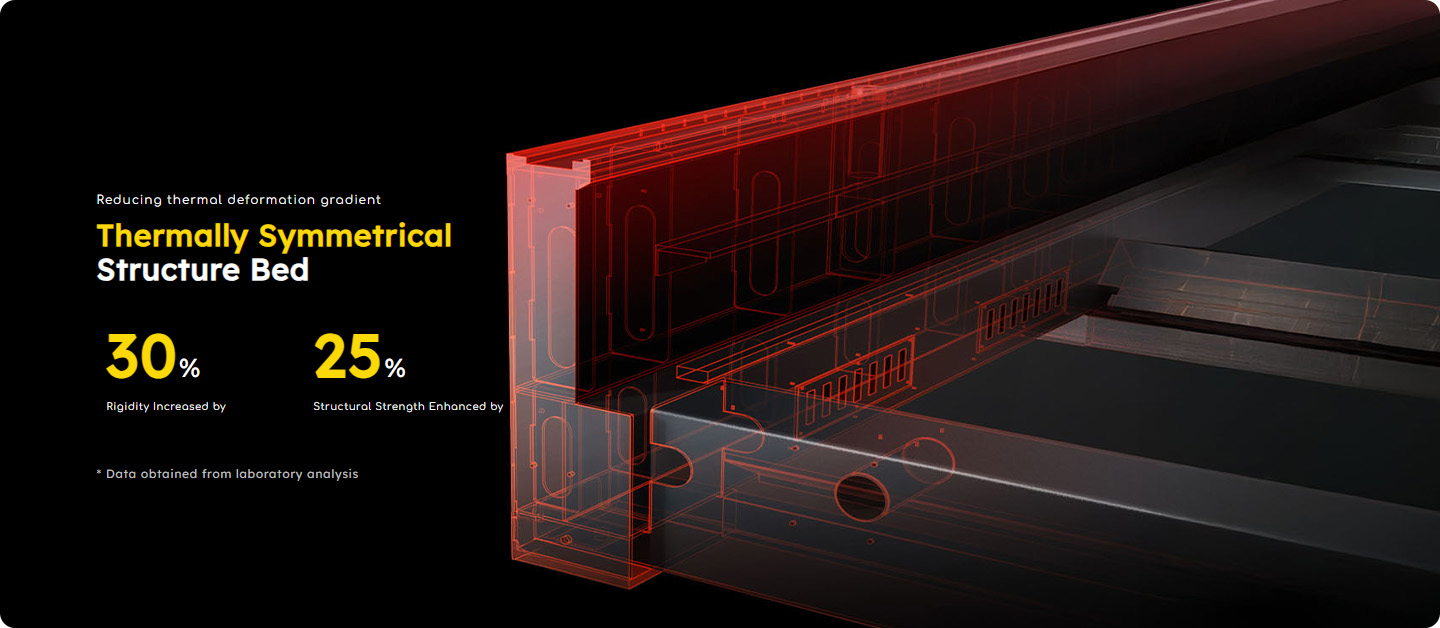

1. Heavy-Duty Heat-Symmetric Bed: Engineered for Stability

The foundation of any high-precision laser is its frame. The K-Series features a Heavy-Duty Heat-Symmetric Bed.

l Thermal Balance: The heat-symmetric design ensures that even during long hours of high-power operation, thermal expansion is balanced, preventing structural deformation.

l Enhanced Rigidity: This reinforced bed structure absorbs vibrations, allowing for high-speed displacement without compromising micron-level accuracy.

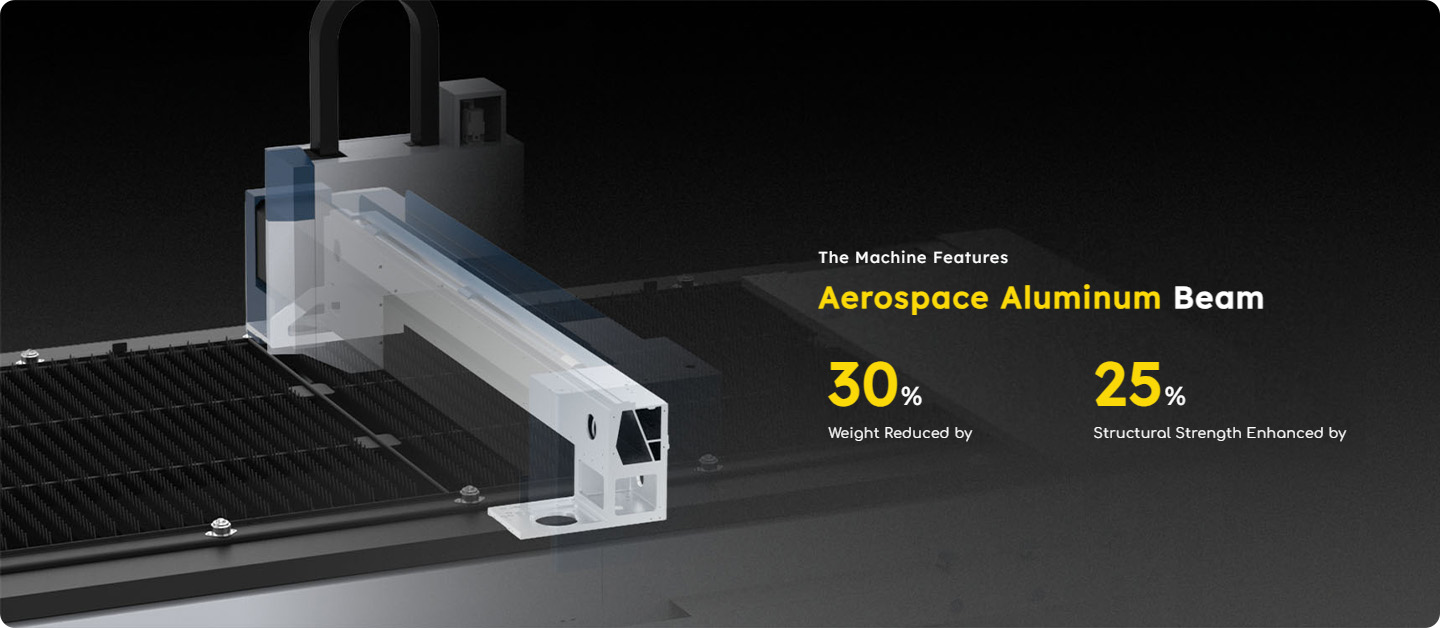

2. Aerospace-Grade Aluminum Gantry

To achieve high acceleration and agility, the K-Series utilizes an Aerospace-Grade Aluminum Gantry.

l Lightweight & Strong: Aluminum provides the perfect strength-to-weight ratio, reducing the load on the motors while maintaining high structural stiffness.

l Dynamic Performance: This allows the laser head to move with extreme responsiveness, significantly shortening the processing cycle of complex geometries.

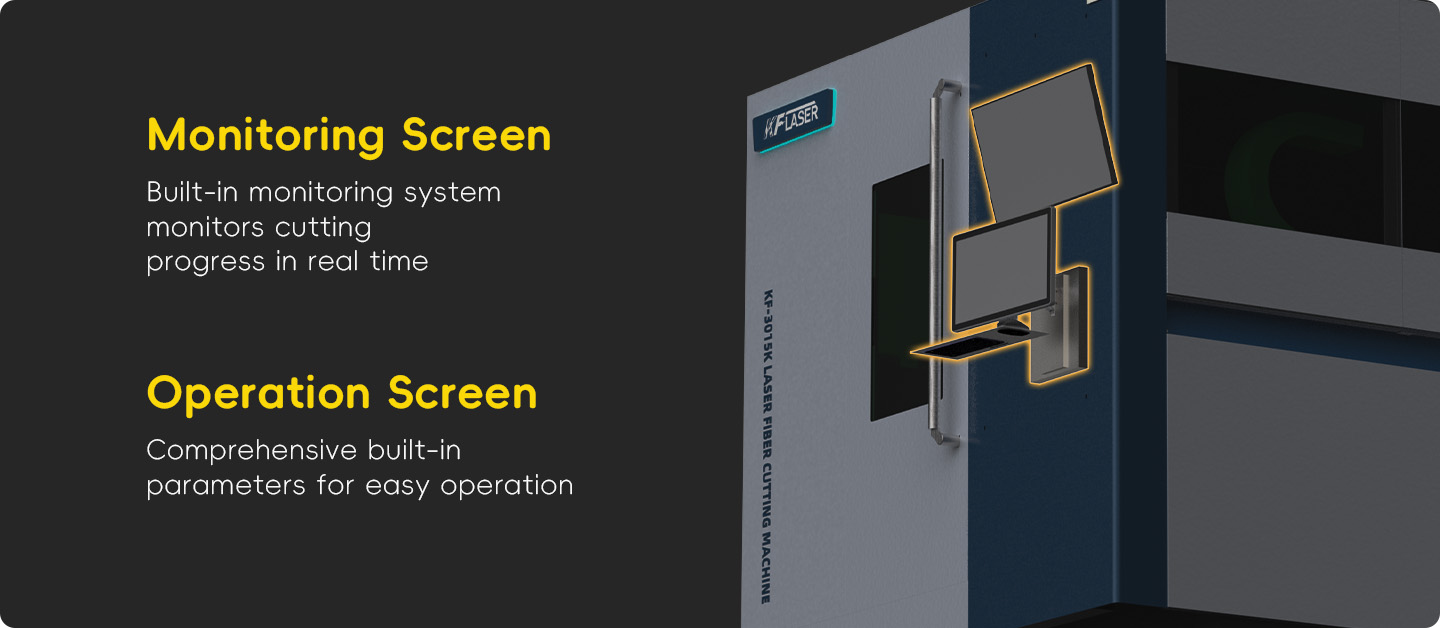

3. Dual-Screen Interface & Real-Time Monitoring

The K-Series is designed with a user-centric "Cockpit" experience, featuring a **Dual-Screen Layout** to separate operation from observation:

l System Operation Screen: Dedicated to the CNC control system, nesting software, and cutting parameters.

l Internal Condition Monitoring Screen: A secondary display linked to **built-in high-definition cameras.

l Real-Time Surveillance: Operators can monitor the internal cutting process, sheet positioning, and laser head status in real-time without ever opening the safety doors.

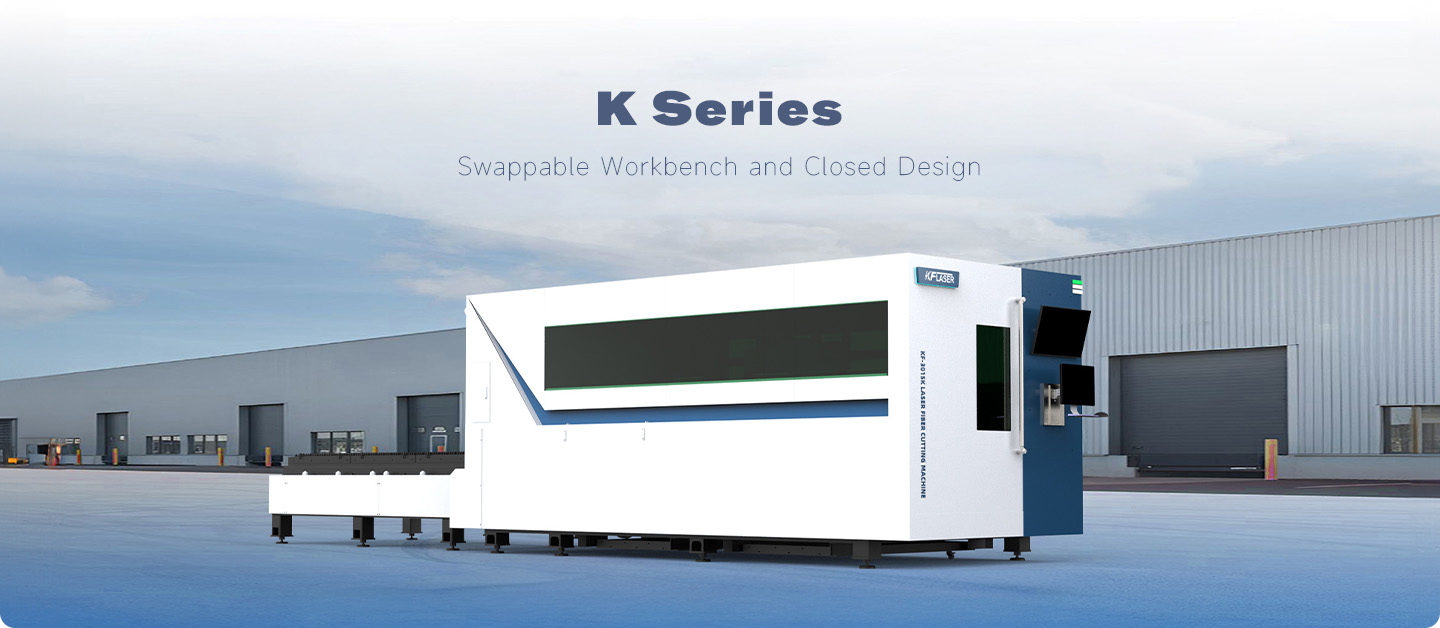

4. Full Enclosure & Automatic Dual-Platform Exchange

Safety and throughput go hand-in-hand with our specialized design:

l Full-Enclosure Protection: The CE-standard protective housing protects operators from laser radiation and dust, making it ideal for high-standard factory environments.

l Fast Exchange Platforms: While one table is cutting, the operator can load/unload the second table. This "zero-idle" workflow maximizes your ROI (Return on Investment).

Technical Specifications: 3015K vs 4020K vs 6025K

Why Choose the K-Series for Your Fabrication Business?

1. Industrial Strength: Designed for 24/7 heavy-duty operation in industries like shipbuilding, construction machinery, and aerospace.

2. Safety First: The fully enclosed design minimizes environmental impact and maximizes workplace safety.

3. Smart Manufacturing: With built-in cameras and dual-screen monitoring, you transition into the era of Industry 4.0.

Contact us today to receive a detailed technical brochure and a factory-direct quote for the 3015K, 4020K, or 6025K series!
